3. Components of a fixed ILite display
3.4 Digitizer
General
The digitizer processes (image processing, conversion and conditioning) all source signals for digital distribution to every tile. The
digitizer can be accessed directly or via the control software (e.g. Director toolset). This software is designed as a user interface to
be used in conjunction with the digitizer and display. It can be used on a PC that’s connected to the digitizer through a serial RS232
connection.

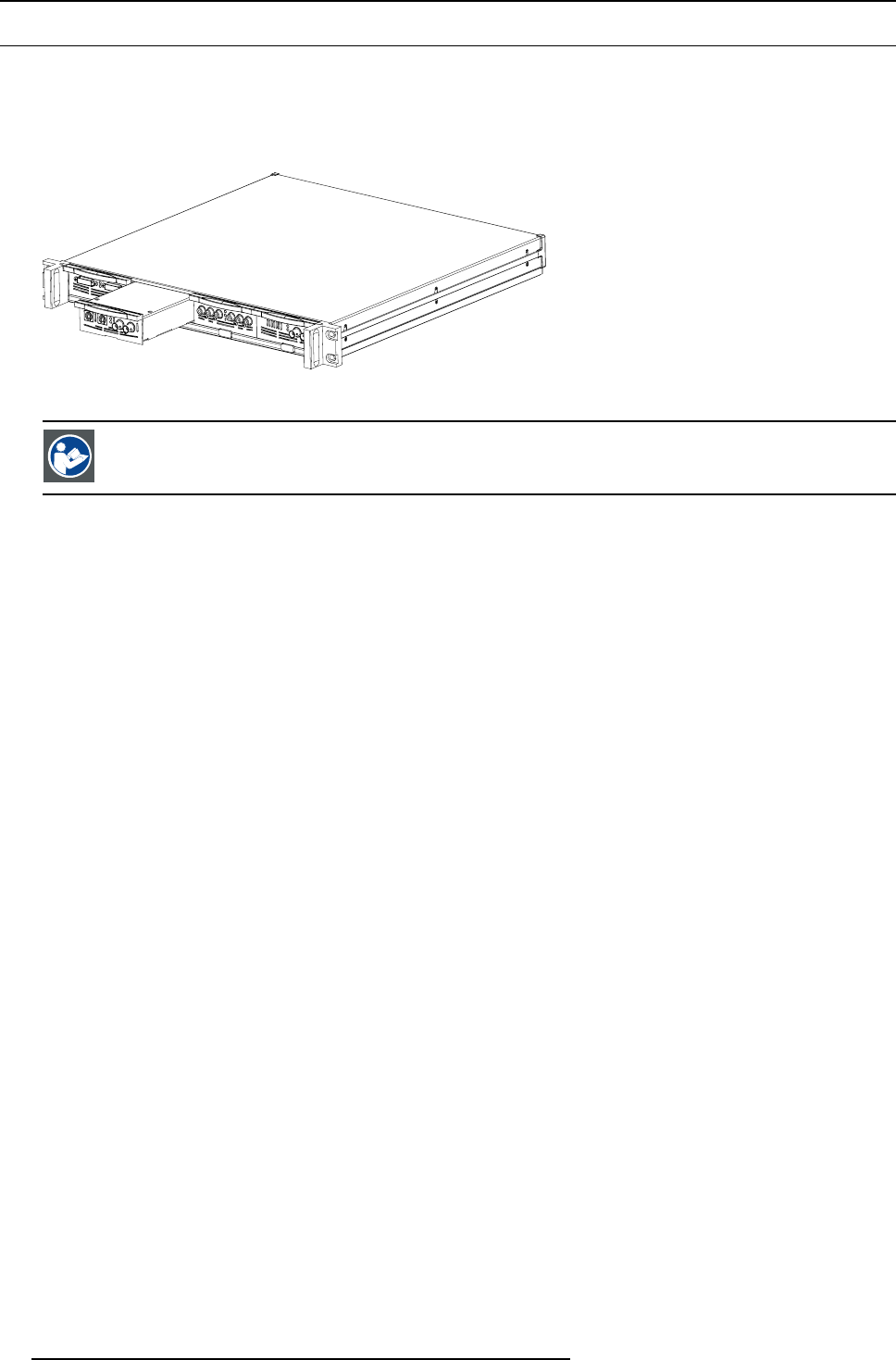

Image 3-21
D320 PL digitizer.
CAUTION: Refer to the manual(s) of the used digitizer for more information about installation and usage
guidelines.
20 R5976522 FIXED ILITE DISPLAY 17/11/2006
