Please note that it is important to keep in mind common safety guidelines when installing your
DVR or connecting additional devices – including turning off and unplugging your DVR before
installing internal components.
INSTALLATION AND
CONNECTION
CHAPTER 2

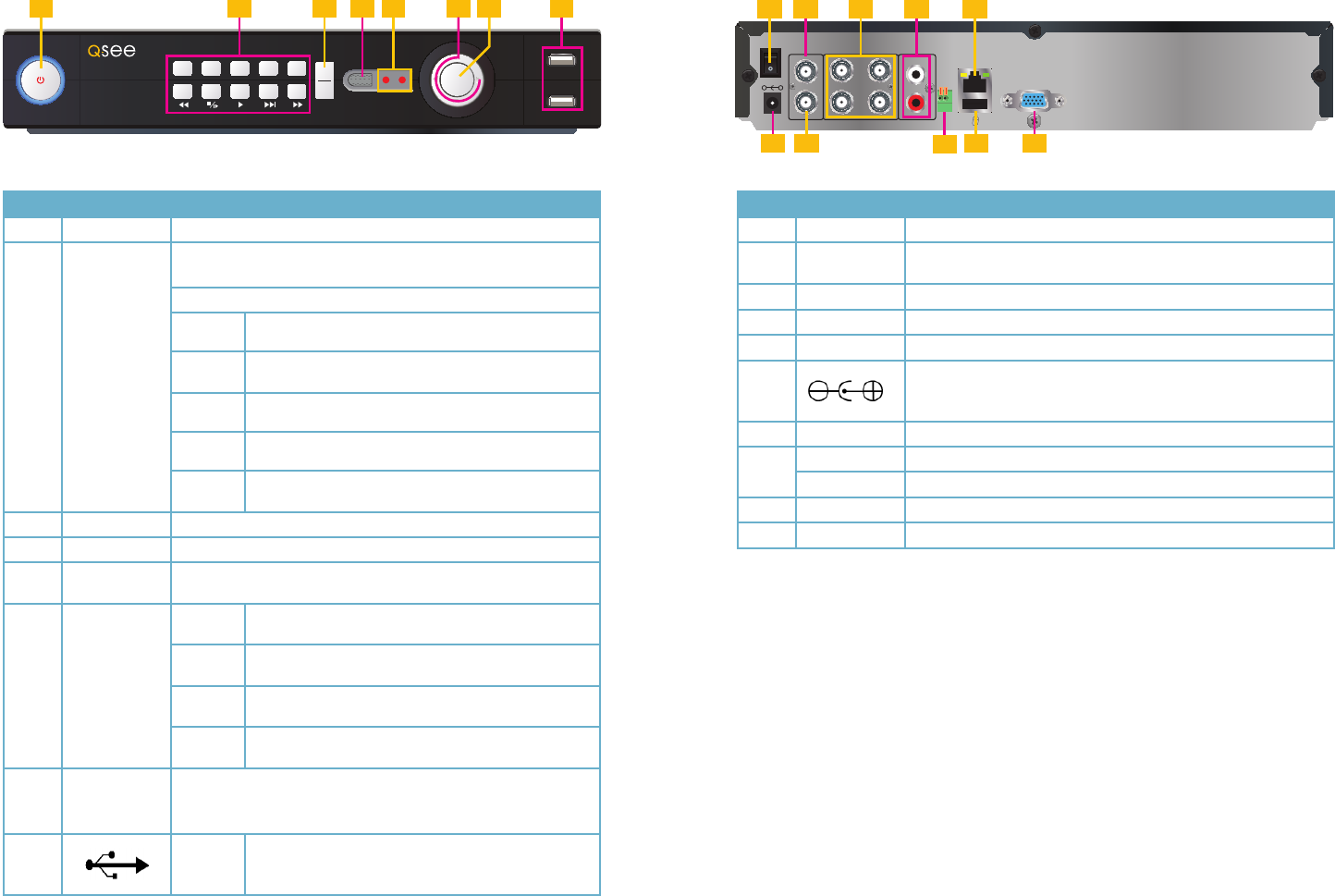

PICTURE 2-1
Item # Name/ Symbol Description
1 STANDBY Press to set the system in standby mode.
2 MENU/EXIT Press to open/close the main menu.
3 CHANNEL/
NUMBERS/
PLAYBACK
Press buttons 1-8 to view the selected channel full-screen; press
buttons 1-0 to input passwords and user IDs.
4 NAVIGATION/
OK
OK In menus, press to confirm selections; in PTZ mode,
press to change the navigation buttons to control a
connected PTZ camera (not included)
▲
Press to move cursor up; in PTZ mode, press to pan
camera up.
▼
Press to move cursor down; in PTZ mode, press to
pan camera down.
◄
Press to move cursor left; in PTZ mode, press to pan
camera left.
►
Press to move cursor right; in PTZ mode, press to
pan camera right.
5 LED
INDICATORS
Shows status of hard drive, recording, alarm, HDD full and
network.
6 DURING
PLAYBACK
PRESS:
◄ ◄
Increase reverse playback speed 1X, 2X, 4X.
n
/
►
Press to freeze playback to one frame, then press
again to advance frame-by-frame.
►
Press to start playback
► ►
|
Press to slow playback speed by 1/2, 1/4, 1/8.
► ►
Press to increase forward playback speed 1X, 2X,
4X.
7 IR SENSOR IR Receiver for remote control.
8
USB Connect a USB flash drive for data backup and
firmware upgrades
QS206
