Chapter 4
Installation Instructions
DishPro Wiring Diagrams

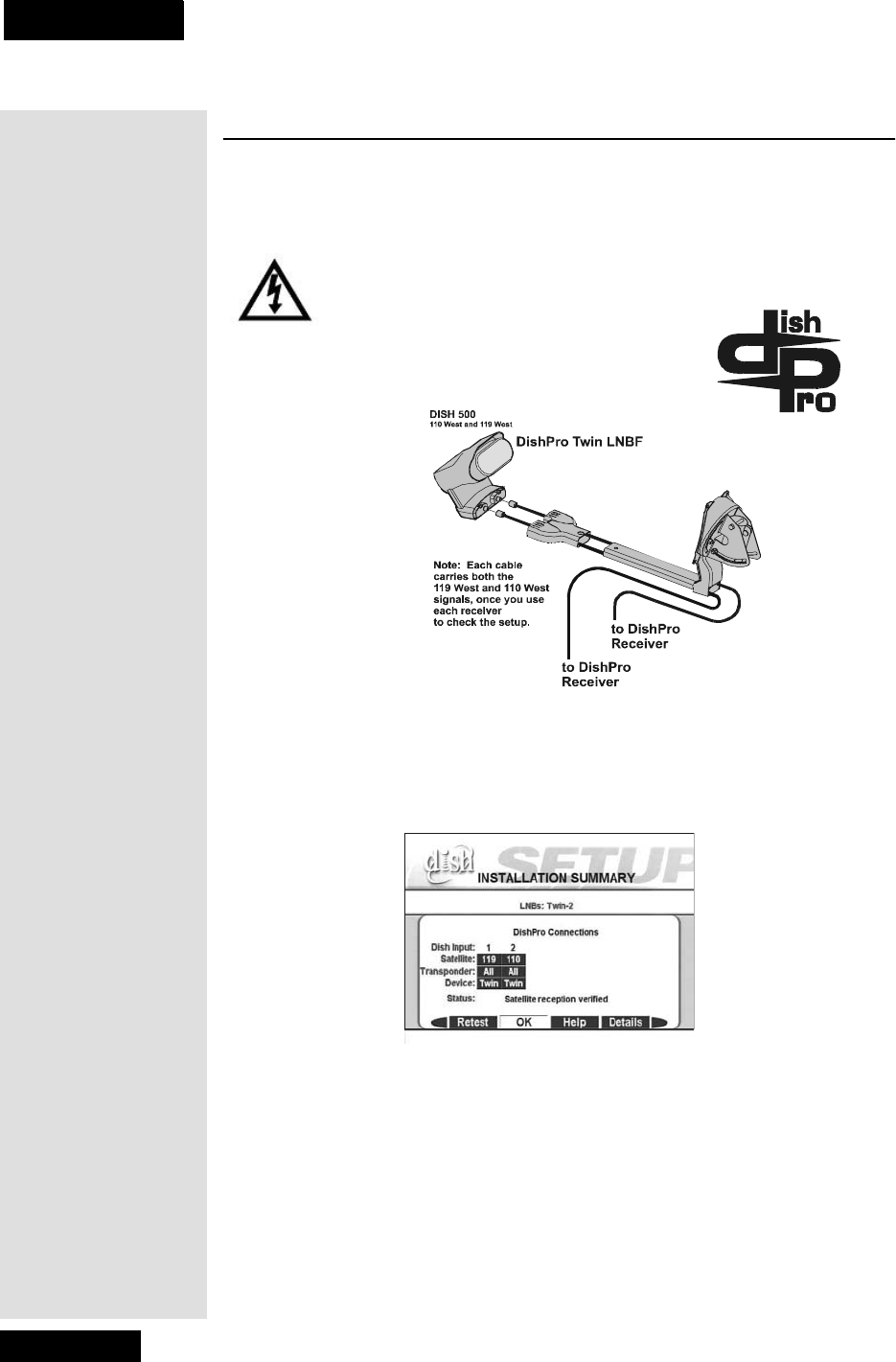

DISH 500, One DishPro Twin LNBF, Two DishPro Receivers
This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC) and all
local electrical codes.
When you set up your system following this diagram and run Check Switch
the Installation Summary screen should look similar to the one shown
below.
