Additional connections
Reference
The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
≥Connect to terminals of the same colour.
≥Supplied Audio/Video cable can also be used as an alternative for
Audio cable without connecting the video connector (yellow).
COMPONENT VIDEO terminals can be used for either interlace or
progressive output (> 81) and provide a purer picture than the S
VIDEO OUT terminal.
≥Connect to terminals of the same colour.
≥Supplied Audio/Video cable can also be used as an alternative for
Audio cable without connecting the video connector (yellow).
If you have a regular television (CRT: cathode ray tube)
Progressive output may cause some flickering, even if it is
progressive compatible. Turn off “Progressive” if you are concerned
about it. This is the same for multi system televisions using PAL
mode.

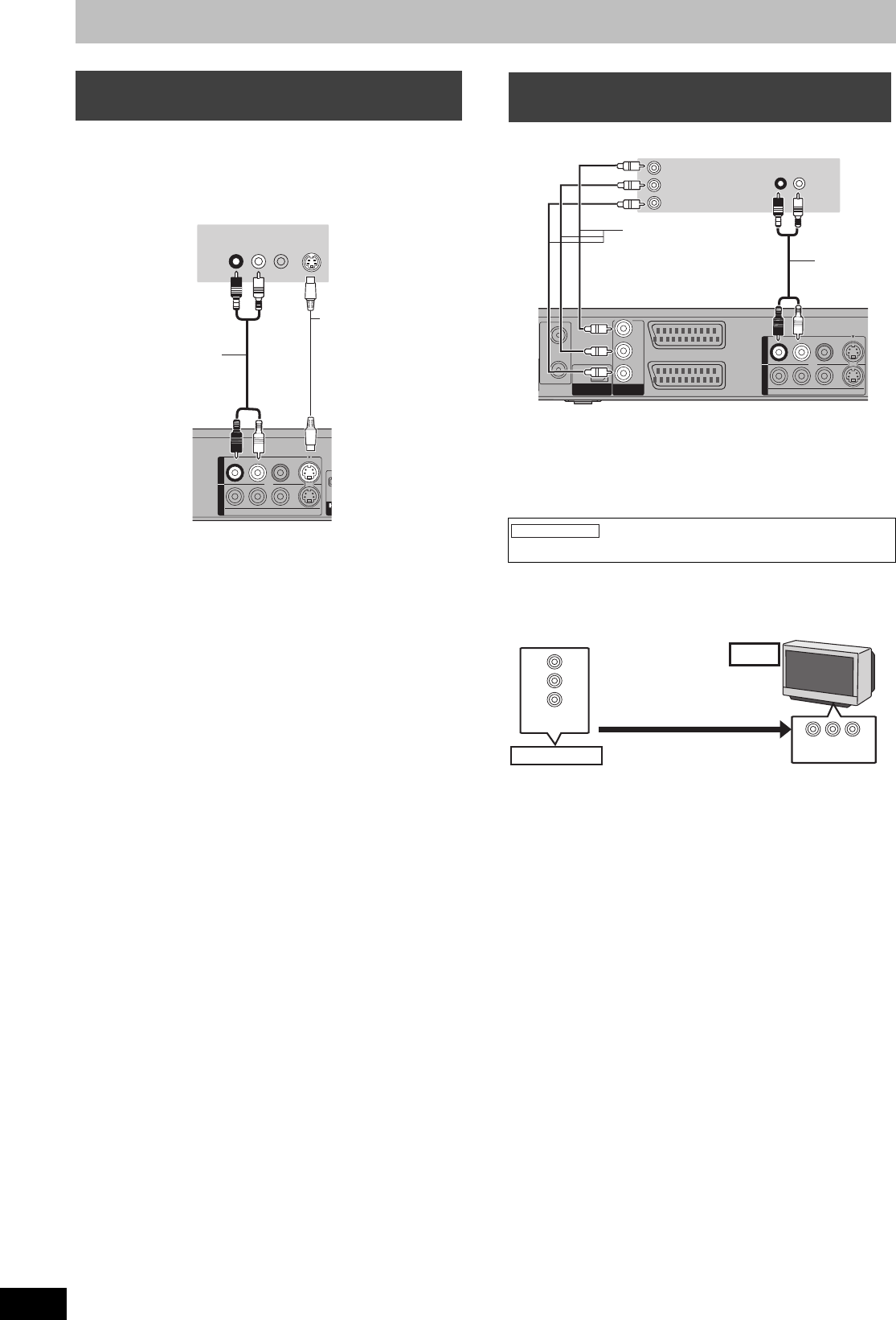

Connecting a television with S VIDEO
terminals
A V OU
S-VIDEOVIDEO
R- A UDIO- L
OUT
OUT
A
A
V4 I
V4 I
N
N
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
Television’s rear panel
S Video cable
This unit’s rear panel
Audio cable
Connecting a television with
COMPONENT VIDEO terminals
“Progressive” setting in the Setup menu (> 63)
RF
RF
IN
IN
RF
RF
OUT
OUT
AV2
(
EXT
)
A V 1
(
TV
)
OPTICAL
DIGI
DIGI
T
T
AL
AL
A
A
UDIO OU
UDIO OU
T
T
(PCM/BITSTREAM)
(PCM/BITSTREAM)
COMPONENT
COMPONENT
VIDEO OUT
VIDEO OUT
P R
P B
Y
S-VIDEOVIDEO
R- A UDIO- L
OUT
OUT
A
A
V4 I
V4 I
N
N
AUDIO IN
R L
P R
P B
Y
COMPONENT
VIDEO IN
Component
video cable
Audio
cable
Television’s rear panel
This unit’s rear panel
Required setting
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
CRT
This unit
Progressive output
DO NOT
