68
RQT9306
Additional connections
≥Connect to terminals of the same colour.
Connecting a television and VCR
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the
21-pin Scart cable.
If your television is equipped with RGB input capability, by
connecting with a fully wired 21-pin Scart cable you can see video
using RGB output on this unit.
“AV1 Output” in the Setup menu (> 63)
Connecting to a VCR with 21-pin Scart terminal
You can also connect with the AV2 terminal on this unit using the
21-pin Scart cable.
“AV2 Input” in the Setup menu (> 63)
Connect the unit directly to the television
If you connect the unit through an AV selector or
video cassette recorder to the television, video
signal will be affected by copyright protection
systems and the picture may not be shown
correctly.
≥When connecting to a television with a
built-in VCR
Connect to the input terminals on the television
side if there are both television and VCR input
terminals.

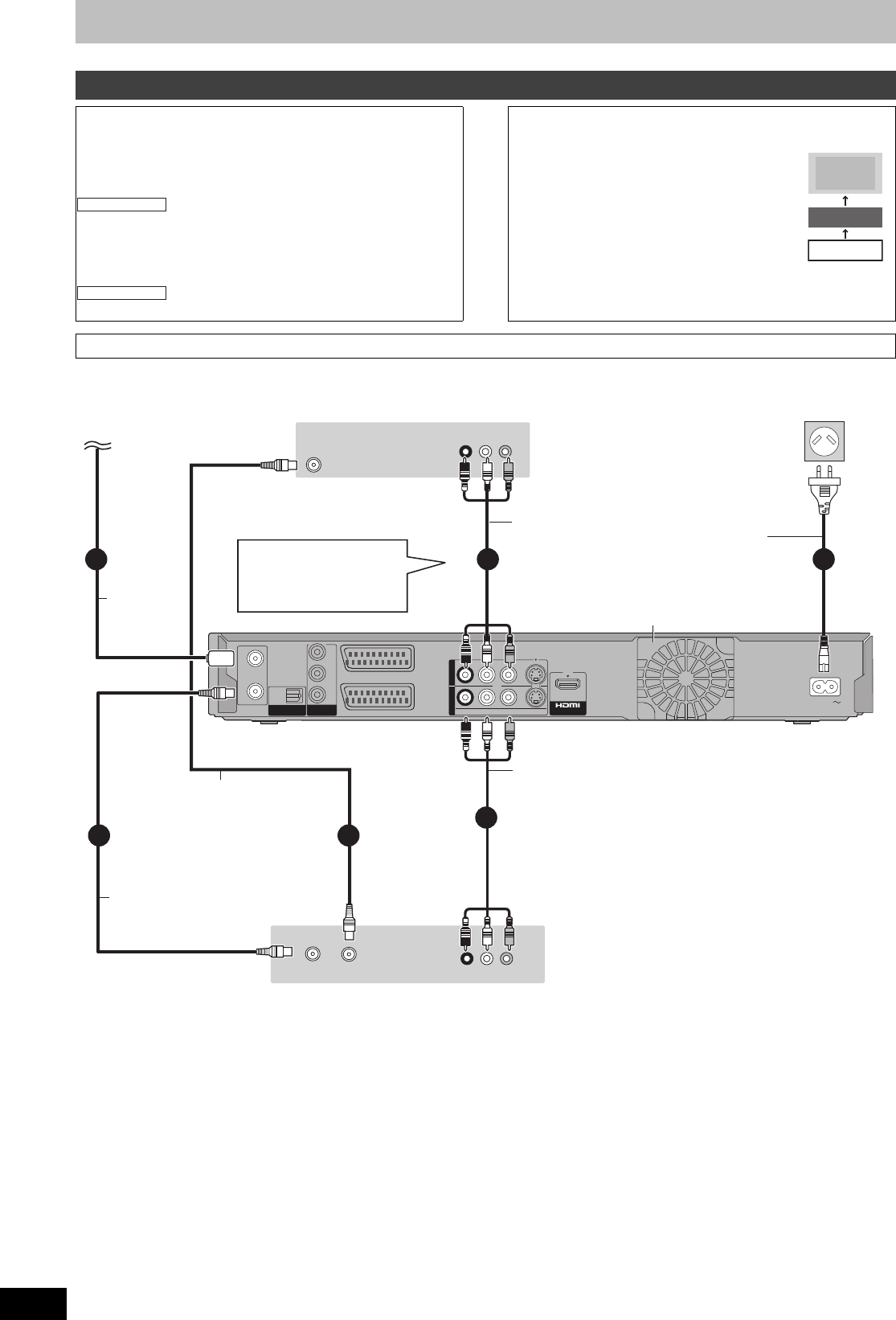

Connecting an Analogue television and VCR
Required setting
Required setting
Television
VCR
This unit
DO NOT
RF
RF
IN
IN
RF
RF
OUT
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
DIGIT
AL
AL A
UDIO OU
UDIO OUT
(PCM/BITSTREAM)
(PCM/BITSTREAM)
COMPONENT
COMPONENT
VIDEO OUT
VIDEO OUT
S-VIDEO
VIDEO
R-AUDIO-L
PR
PB
Y
AC IN
OUT
OUTA
V4 I
V4 IN
AV OUT
VHF/UHF
RF IN
RF OUT
VIDEO OUT
R L
AUDIO OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO IN
6
3
5
4
2
1
To the aerial
Aerial cable
Cooling fan
RF coaxial cable
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Analogue television’s rear panel
VCR’s rear panel
AC mains lead
(included)
Connect only after all other
connections are complete.
RF coaxial cable
(included)
Other connections
(> 8, 66)
Audio/Video cable
(included)
Audio/Video cable
