Connecting up
02
18
En

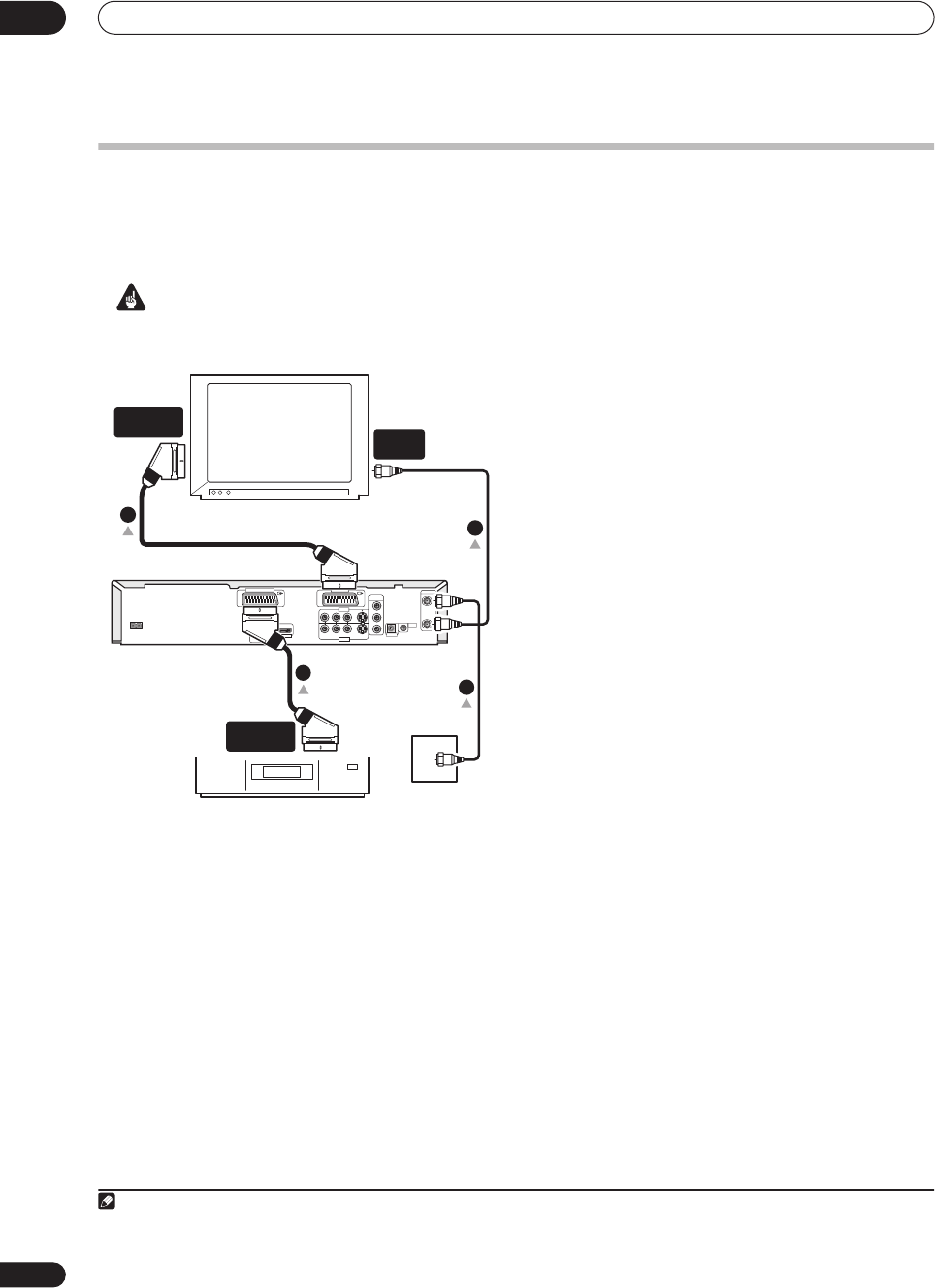

Connecting an external decoder box (2)
If you only have a decoder, connect it to this recorder and your TV as shown on this page.
1
Using the setup on this page you can:
• Record scrambled channels received using the recorder’s built-in TV tuner.
Important
• Do not connect this recorder ‘through’ your VCR, satellite receiver or cable box. Always connect each component
directly to your TV or AV amplifier/receiver.
1 Connect RF antenna cables as shown.
This enables you to watch and record TV channels.
2 Use a SCART cable (not supplied) to connect the
AV1(RGB)-TV AV connector to a SCART AV connector
on your TV.
This enables you to watch discs.
3 Use another SCART cable to connect the
AV2(INPUT 1/DECODER) AV connector to a SCART AV
connector on your decoder box.
This enables you to record scrambled TV channels.
Note
1 In order to use this setup, you will need to make the following settings from the Initial Setup menu:
• Set the
AV2/L1 In
setting to
Decoder
from the Initial Setup menu (see
AV2/L1 In
on page 113).
• From the
Manual CH Setting
screen, set the
Decoder
setting for the scrambled channels to
On
(see
Manual CH Setting
on page 110).
TV
Antenna/cable TV
wall outlet
Decoder
COMPONENT
VIDEO OUT
AC IN
DIGITAL
AUDIO OUT
OPTICAL
COAXIAL
CONTROL
G-LINK
IN
IN
OUT
ANTENNA
RL
AUDIO
VIDEO
S-VIDEO
Y
P
B
PR
OUT PUT
HDMI OUT
IN PUT 3
AV 1 (RGB) - TVAV 2 (INPUT 1/DECODER)
SCART AV
CONNECTOR
SCART AV
CONNECTOR
ANTENNA
IN
1
2
3
1
