CONNECTING POWER AND SCSI CABLING
After the LF 6602 has been installed in its operating location, the primary AC power cord and host SCSI
interface cabling can be connected. The type of primary AC power cord being installed depends upon the
installation location.
Perform the following procedure to install the power cabling on an LF 6602:
1) Unlock and open the LF 6602's rear door.
2) Ensure that each drive's AC power cord is securely connected to the power socket strip
(see figure below).

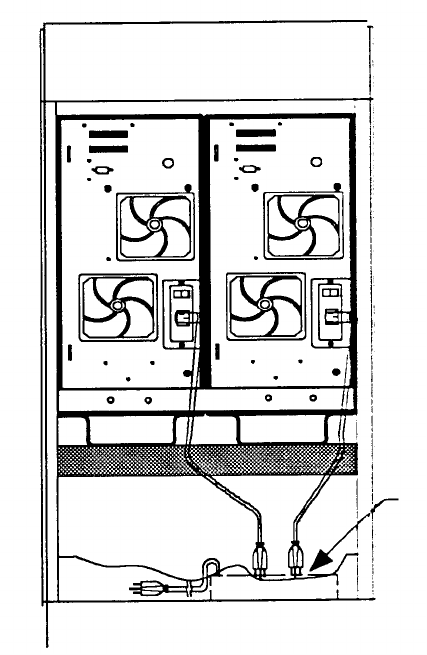

EP006031
LF 6602 Rear Panel
3) Ensure facility power is available and the primary AC power cord connector (male end) will
match the site AC power wall outlet.
4) Ensure that the AC power switches on the drives' rear panels are set to the OFF ( O )
position.
5) Plug the primary AC power cord connector (female end) into the LF 6602's power strip.
Each drive has two SCSI connectors on the rear panel that are used to interface the drive with other SCSI
devices (see the next figure). The lower SCSI I/O connector is normally used as the input port and the
upper connector is used as the output port.
POWER
SOCKET
STRIP
