Installation

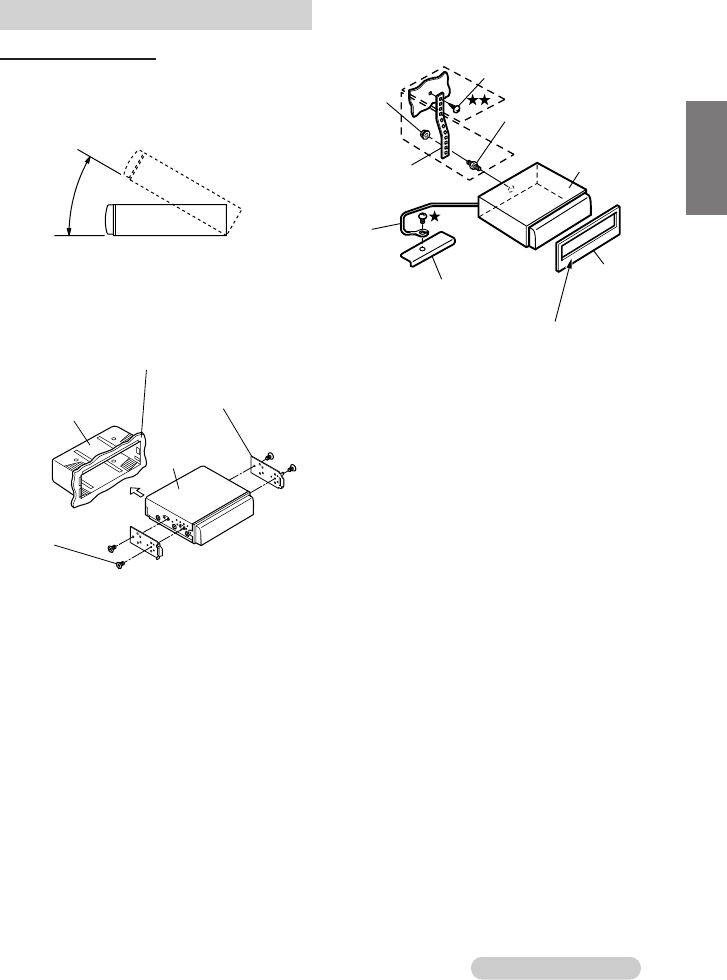

Installing the Monitor
Installation Location
Before deciding on the mounting location,
check that opening and closing the display will
not hamper gear shifting in that position.
Install at an angle of within 30 degrees from
the horizontal.
1
Slide the mounting sleeve into the
dashboard. Install the supplied bracket
on the monitor.
Make sure to use the supplied screw
(M4 x 3) to install the monitor.
If you use another screw to install the
monitor, it may cause a malfunction.
Screws (M4 x 3)
(Included)
Mounting Bracket
(Included)
Dashboard
Mounting Sleeve
(Included)
TMI-M990
2
TMI-M990
Front Frame
(Included)
Bolt Stud
Metal Mounting
Strap
Screw
Hex Nut
(M5)
Ground
Lead
Chassis
Wider edge should
face down.
Reinforce the monitor unit with a metal
mounting strap (not supplied). Secure
the ground lead of the unit to a clean
metal spot using a screw () already
attached to the vehicle's chassis.
For the screw marked ★★, use an
appropriate screw for the chosen
mounting location.
Continued
