S Video Input Terminal
2
Display Output Terminal
3
IONBUS Terminal
4
Ai-NET Connector
Only an Ai-NET compatible CD changer, XM Radio Module can be connected. All other Ai-
NET products are not compatible.
5
DVD Audio Link Terminal
6
S Video Cable (Included with head unit)
7
Monitor Extension Cable (Included)
8
IONBUS Cable (Included)
9
IONBUS Cable (Included with CONVERTER)
p
DVD Audio Link Cable (Included with Multimedia Manager)
q
Ai-NET Cable (Included with CD changer)
w
Road EQ Microphone Terminal
e
Microphone Terminal automatic adjustment
r
Microphone Terminal Connection Cable (Included with Multimedia Manager)
t
S Video Output Terminal
y
System Switch
Change to “1:SYSTEM” when the TMI-M990 is connected with an IONBUS compatible head
unit.
*
1

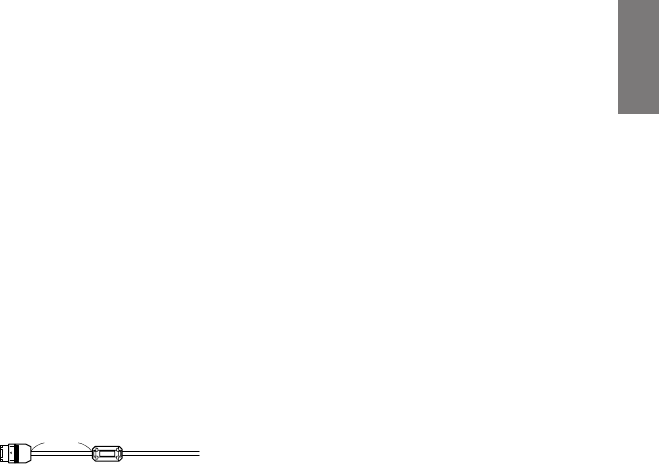

Ferrite Core
Attach the Ferrite Core (included) to the both ends of the IONBUS cable at a location where
the product does not touch the core when installing.
(When connecting to the main unit, attach the core at a location of approx. 10 cm from the
terminal end.)
When attaching the core to the cable from the monitor main unit, also attach to the both
ends.
Two pieces are attached to TMI-M990, PXI-H990, KCI-500B.
*
2
Connect only when using the Road EQ microphone built in the main unit.
• IONBUS compatible products can be connected in any order. The above connection chart is
an example.
• When connecting with the IONBUS compatible head unit, do not connect the ignition lead.
• Use if connecting a KCI-500B to an Ai-NET compatible CD changer, XM Radio Module.
10cm
