KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-747 Control Ports
16
7 Connecting the VP-747 Control Ports
This section describes how to connect the VP-747 control ports, that is, the:
• RS-232 port, see
• TO AUDIO UNIT port, see
Section 7.1
• TO CONTROLLER port, see
Section 7.2
• ETHERNET port, see
Section 7.3
7.1 Connecting a PC (via RS-232)
Section 7.4
You can connect a PC (or other controller) to the VP-747 via the RS-232 port
for remote control.
To connect a PC to a VP-747
unit, using the Null-modem adapter provided
with the machine (recommended):
• Connect the RS-232 9-pin D-sub rear panel port on the VP-747
unit to the
Null-modem adapter and connect the Null-modem adapter with a 9-wire
flat cable to the RS-232 9-pin D-sub port on your PC
To connect a PC to a VP-747
unit, without using a Null-modem adapter:
• Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin
D-sub rear panel port on the VP-747
unit, forming a cross-connection
1
, as
Figure 6 illustrates
9-pin D-sub
(From PC)
9-pin D-sub
(To Presentation
Switcher/Scaler)
If a shielded cable is used, connect the shield to PIN 5
PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3

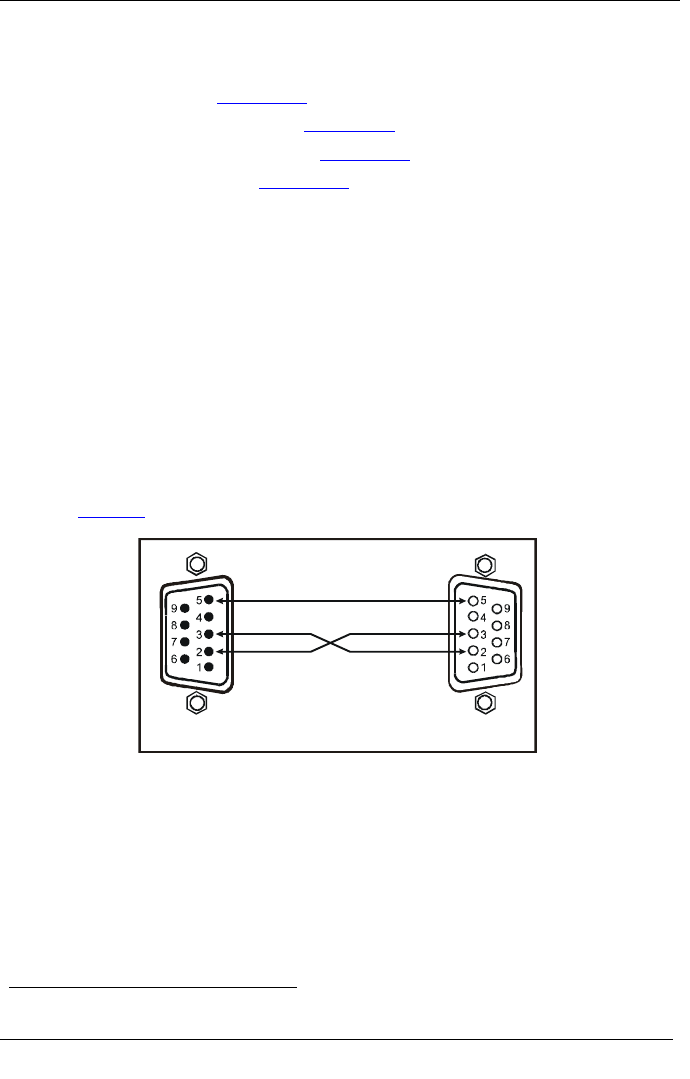

Figure 6: Connecting the PC
1 Also known as a null-modem connection
