Additional connections
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital
video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), the output can be switched to
1080p, 1080i or 720p HD video.
≥This unit incorporates HDMI
TM
(V.1.3a with Deep Colour, x.v.Colour
TM
, High Bit Rate Audio) technology (> 118, 119).
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image resolution than true,
native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
≥When outputting 1080p signal, please use HDMI Cables 5.0 meters or less.
[Note]
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (> 118) and
output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input
terminal (PC monitors, etc.):
Depending on the unit, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)
Connecting with an HDMI compatible television and receiver
Regarding VIERA Link “HDAVI Control
TM
” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be possible.
[> 76, Linked operations with the TV (VIERA Link “HDAVI Control
TM
”/Q Link)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
10BASE-T/
100BASE-TX
LNB
LNB
IN 1
IN 1
LNB
LNB
IN 2
IN 2
OPTICAL
COAXIAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
OUT
AUDIO
OUT
VIDEO
L
R
Y
R
P
B
P
AV1
(TV)
VIDEO
RGB/S VIDEO
AV2
(EXT)
VIDEO
RGB/S VIDEO
1
2
COMMON INTERFACE
13V/18V
400mA max.
HDMI IN HDMI OUT
AV
HDMI IN
HDMI AV OUT
This unit’s rear
panel
HDMI cable
HDMI cable
Television’s rear
panel
Receiver’s rear
panel
[Required^setting]
≥Set “HDMI Video Mode” and “HDMI
Audio Output” to “On” (> 93).
(The default setting is “On”.)
Fully wired 21-pin Scart cable

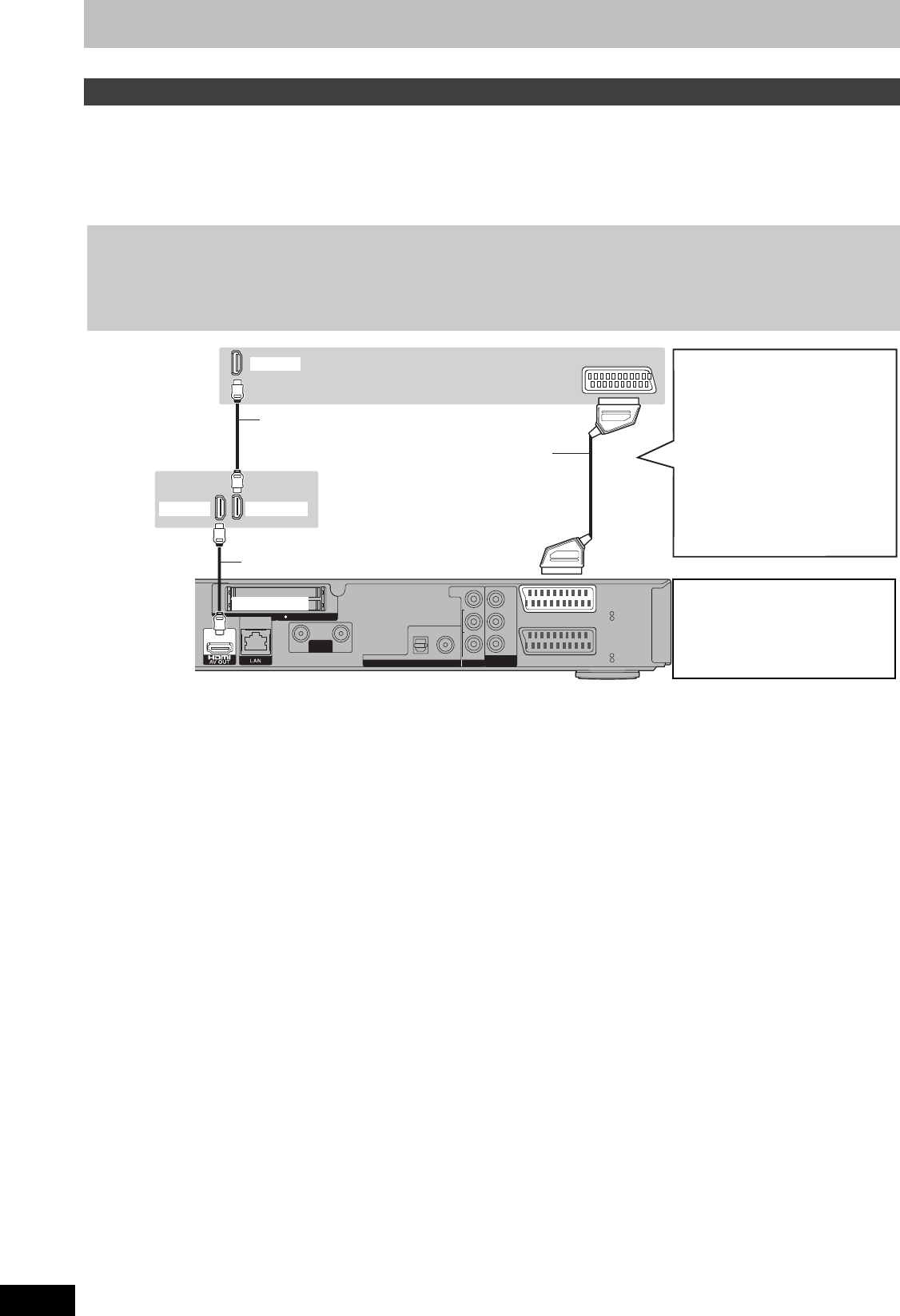

Connecting with a Panasonic TV
(VIERA)
If the 21-pin Scart cable is
connected, the following functions
are available.
≥Direct TV Recording (> 76)
≥Pause Live TV programme (> 77)
