Getting Started
13
Getting Started
Detaching the
Speakers
(KDS-R70XBR2 only)
The speakers on the KDS-R70XBR2 can be detached if required. If you use
a multi-channel surround speaker system and there is insufficient space to
install the display unit, we recommend using the speakers detached.

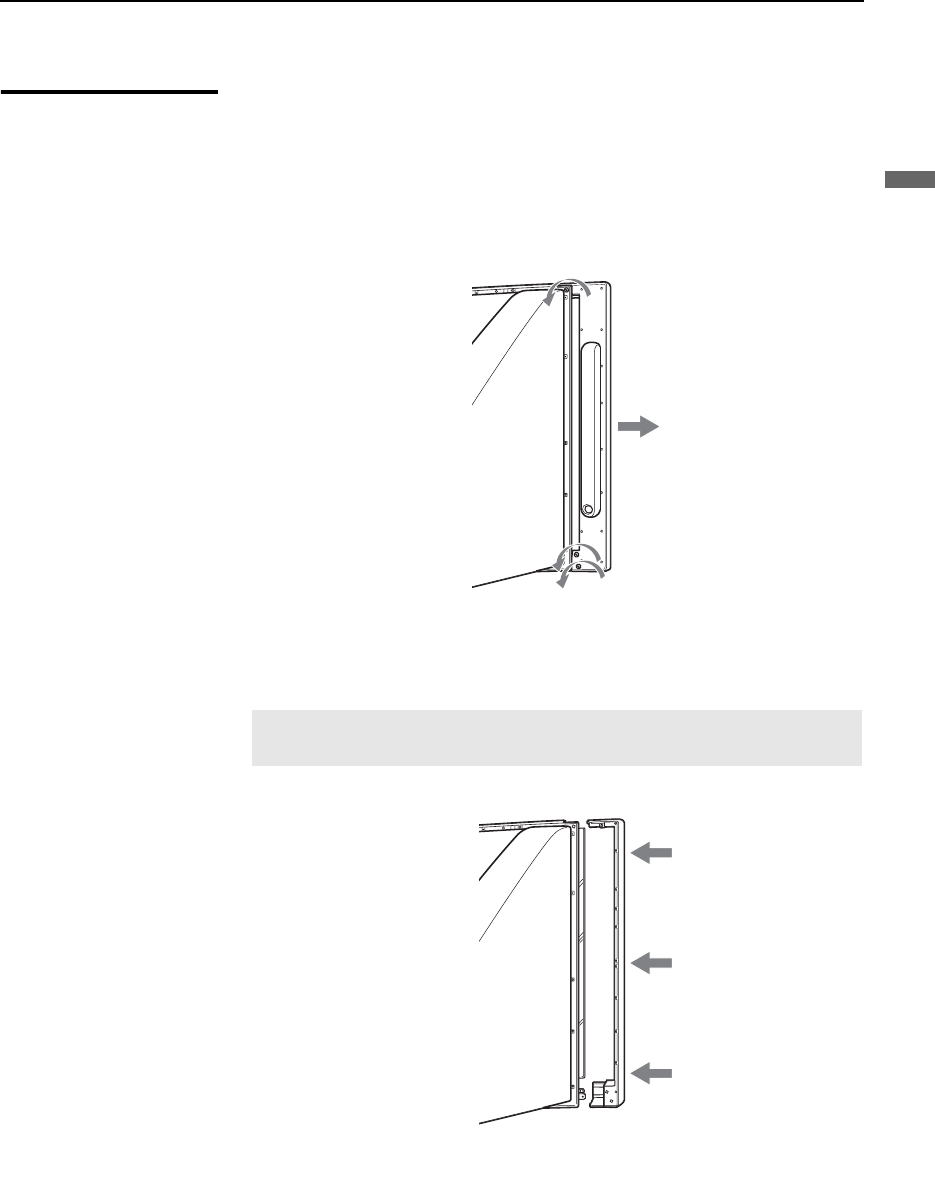

1 Remove the three screws that are located on the rear of the speaker, and
pull the speaker straight out to detach it from the panel.
When removing the screws, use a coin to turn them counterclockwise.
2 Attach the side cover that came in the box.
Press the cover at the top, middle, and bottom to make sure that it is
attached securely (see illustration).
Facing the TV, make sure that the side covers marked “R” (right) and “L”
(left) are attached to the corresponding sides of the TV.
(Continued)
