Digital Cable Box
Use this hookup if
❑ You subscribe to a cable TV system that uses scrambled or encoded
signals requiring a cable box to view all channels, and
❑ You do not intend to hook up any other audio or video equipment to
your TV.
Satellite Receiver
and Cable/Antenna
z
To change channels
using the cable box, set
your TV to channel 3 or
4 depending on the
cable box channel
output.
✍ To set up the TV remote control, see “Programming the Remote
Control” on page 32.
✍ Press SAT/CABLE to begin operating the cable box with the remote
control (see page 28). The indicator will light up.

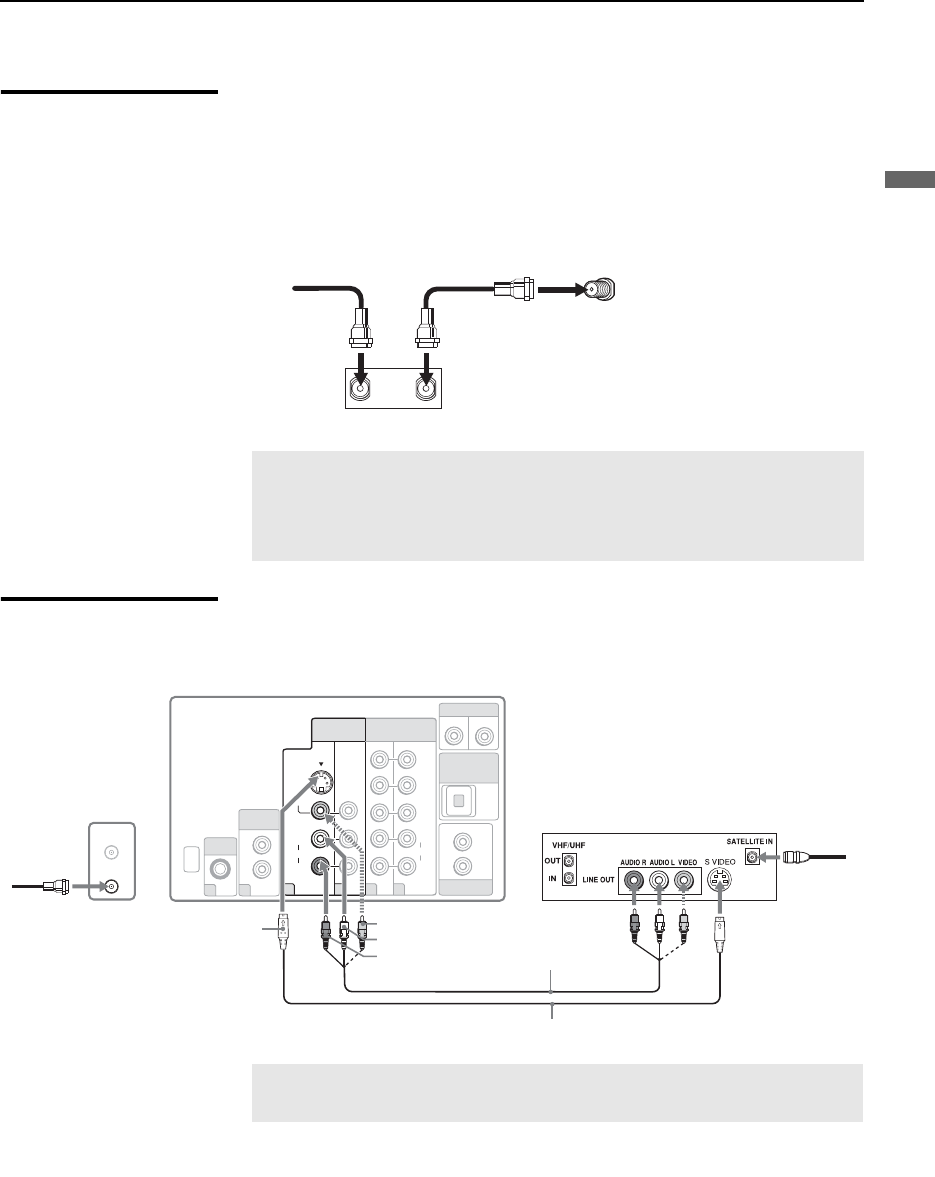

IN OUT
CABLE
Rear of TV
Cable box
CATV cable
Coaxial cable
CABLE
VHF/UHF
6
5
4
1
AUDIO
VIDEO IN
HD/DVD IN
VIDEO
S VIDEO
(
MONO
)
R
L
AUDIO
R
L
(1080i/720p/480p/480i)
P
R
P
B
Y
R
L
AUDIO OUT
(VAR/FIX)
9
PC IN
AUDIO
IN
CONTROL S
OUT
DIGITAL OUT
(OPTICAL)
8
HDMI
IN AUDIO
R
L
SERVICE
ONLY
Satellite receiver
A/V cable
VIDEO (yellow)
Satellite
antenna
cable
S VIDEO
S VIDEO cable
AUDIO-L (white)
AUDIO-R (red)
Coaxial
cable
Rear of TV
✍ If your satellite receiver is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
