Chapter 3 Hardware Installation and Configuration
21
5 volt DC input

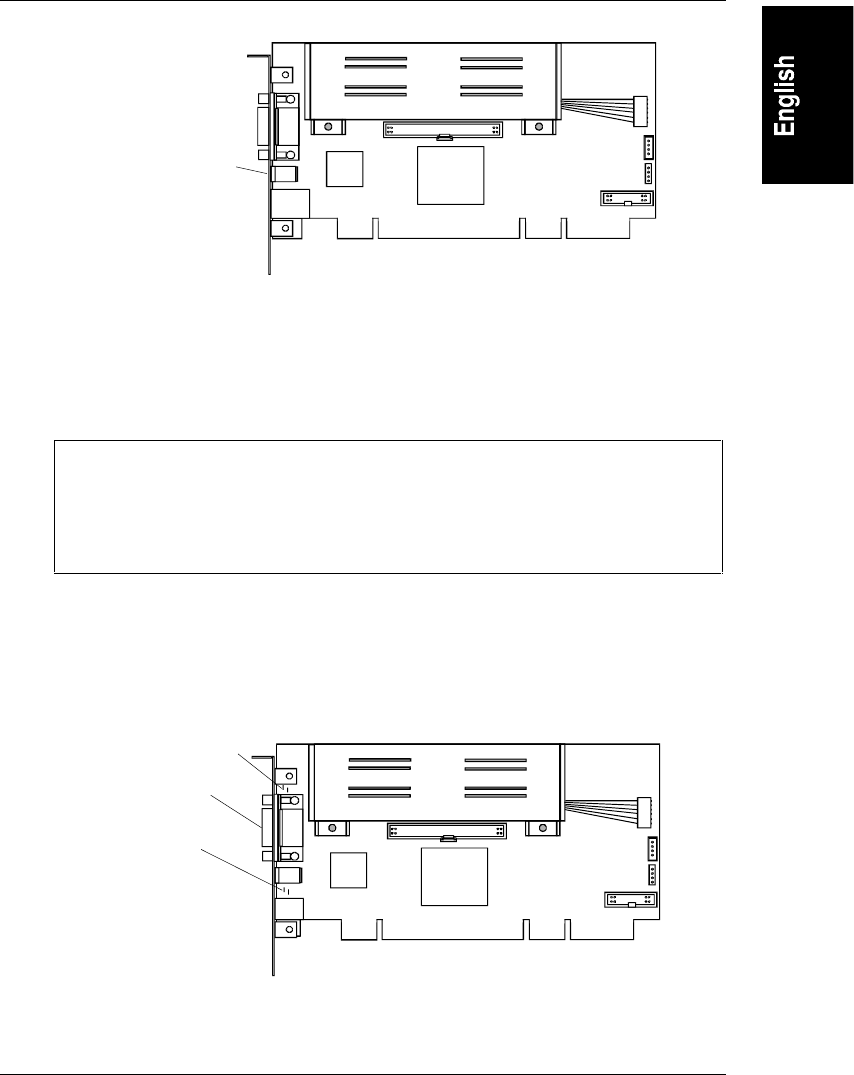

Figure 3-5. Plugging in the Optional AC/DC Adapter
3. HP recommends that you attach the AC/DC adapter directly to the server
housing using tie wraps to ensure that the power supply cable to the card
isn’t accidentally disconnected.
CAUTION Do not power down a server with an installed HP TopTools
Remote Control card if the card’s battery is weak and the card
does not have an AC/DC adapter plugged in. In such a case,
you will not be able to remotely connect to the server until
someone goes to the server site and powers the unit back on.
Verifying Card Installation
Each time the HP TopTools Remote Control card is powered up, a built-in
self-test procedure automatically executes.
Diagnostic LEDs
RS-232 port
LAN LEDs
Figure 3-6. HP TopTools Remote Control PCI Card LEDs
