Insignia NS-FSDVDR DVD Recorder User Manual



6
Insignia NS-FSDVDR DVD recorder
www.insignia-products.com

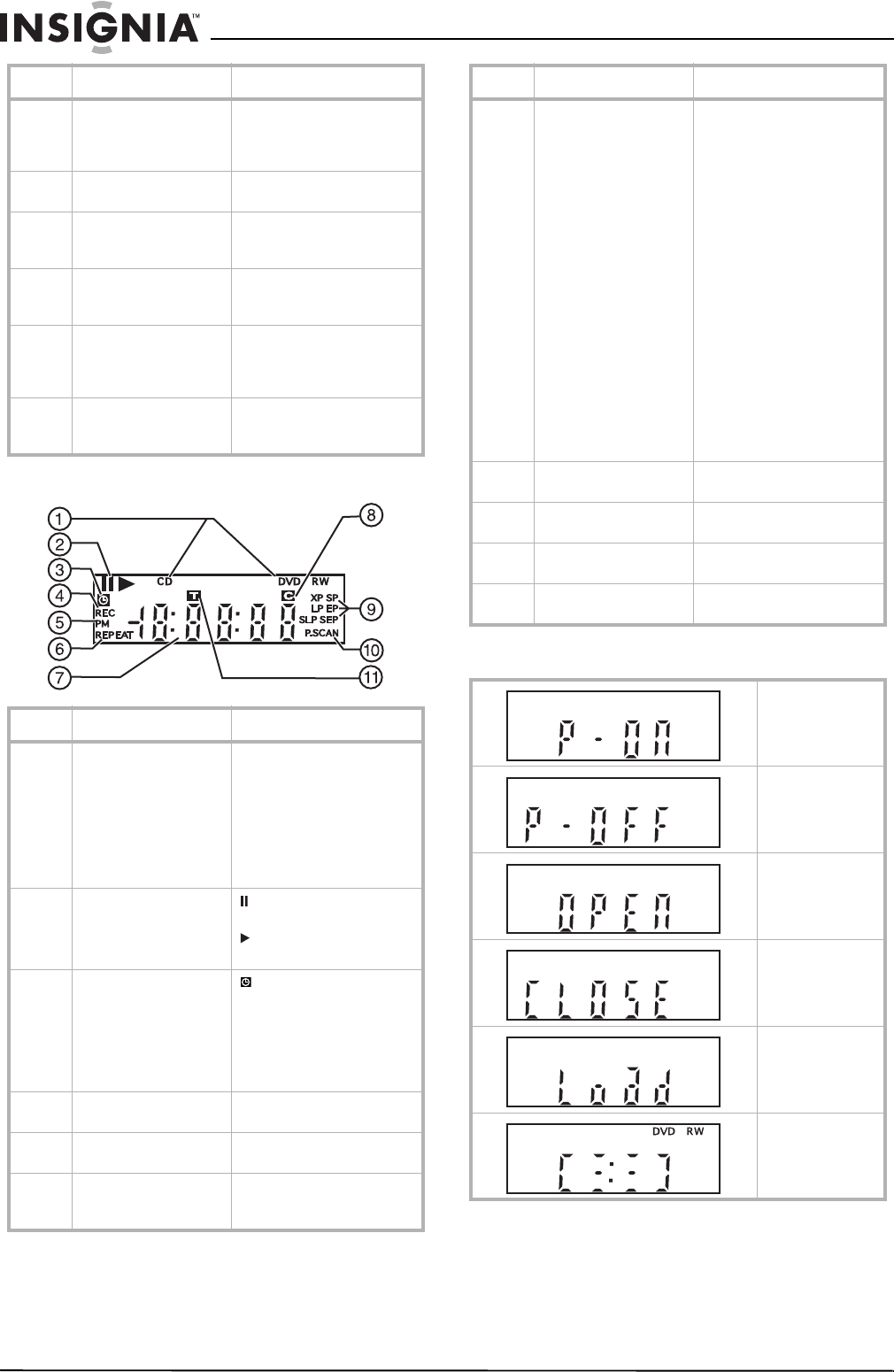

Front panel display
The front panel display also displays messages
to indicate the following status information:
6 AUDIO IN (L1) jacks Connect the audio on an
external device to these
jacks with a standard A/V
cable.
7 S-VIDEO IN (L1) jack Connect an S-Video device
to this jack.
8 S-VIDEO OUT jack Connect a TV, A/V receiver,
or another device to this
jack.
9 COMPONENT VIDEO
OUTPUT jacks
Connect a TV to these jacks
with a component video
cable.
10 AUDIO OUT jacks Connect the audio on an
external device to these
jacks with a standard A/V
cable.
11 COAXIAL DIGITAL
AUDIO OUTPUT jack
Connect a Dolby Digital
decoder or digital sound
system to this jack.
# Indicator Description
1Disc type CD—Appears when an audio
CD is in the disc tray.
DVD—Appears when a DVD
is in the disc tray.
DVD R—Appears when a
DVD-R is in the disc tray.
DVD RW—Appears when a
DVD-RW is in the disc tray.
2 Current status
—Appears when playback
is paused.
—Appears when a disc is
playing.
3 Timer recorder
—Appears when a timer
program recording is in
progress. Flashes when all
timer program recordings
have been completed or
when a program cannot be
recorded for some reason.
4 Recording REC—Appears when a
recording is in progress.
5 PM Appears when the clock is
displayed after 12:00 noon.
6Repeat mode REPEAT—Appears when
your recorder is in repeat
mode.
# Component Description
7 Time Displays status informtion.
For example:
When no disc is in
the disc tray, displays
the channel number.
When a recordable
disc is in the disc
tray, displays the
remaining recordable
time.
When a disc is
recording, displays
the elapsed recording
time.
•When an OTR is
occuring, displays
the remaining
recording time.
When your recorder
is in standby mode or
menu mode, displays
the current time.
8Chapter mark C—Appears when indicating
a chapter number.
9 Recording speed Indicates the current
recording speed.
10 P.SCAN Appears when progress scan
is turned on.
11 Title or track mark T—Appears when indicating
a title or track number.
Appears when
your recorder is
turned on.
Appears when
your recorder is
turned off.
Appears when the
disc tray is open.
Appears when the
disc tray is
closing.
Appears when
your recorder is
reading a disc.
Appears when
your recorder is
writing to disc.
# Indicator Description
