This connecting cable, also known as the
SVHS cable, is used to transmit the
brightness signal (Y signal) and color
signal (C signal) separately. This mini DIN
jack is also called a Hosiden jack.
Have the following cables ready:
1) Antenna cable
2) S-Video (SVHS) cable (not supplied)
3) Audio cables (red/white)
1 Turn off your TV and remove the antenna
cable from your TV (or Satellite Receiver/
Cable Box.) Insert it to the ANTENNA
input jack at the back of the DVD
recorder.
2 Use the supplied antenna cable to
connect the DVD recorder’s TV input
jack to the antenna input jack at the back
of your TV set.
3 Use an S-Video (SVHS) cable to connect
the DVD recorder’s S-VIDEO (Y/C)
(OUT 2) jack to the S-Video In jack at
the back of your TV set (or labeled as
S-Video In or SVHS.)

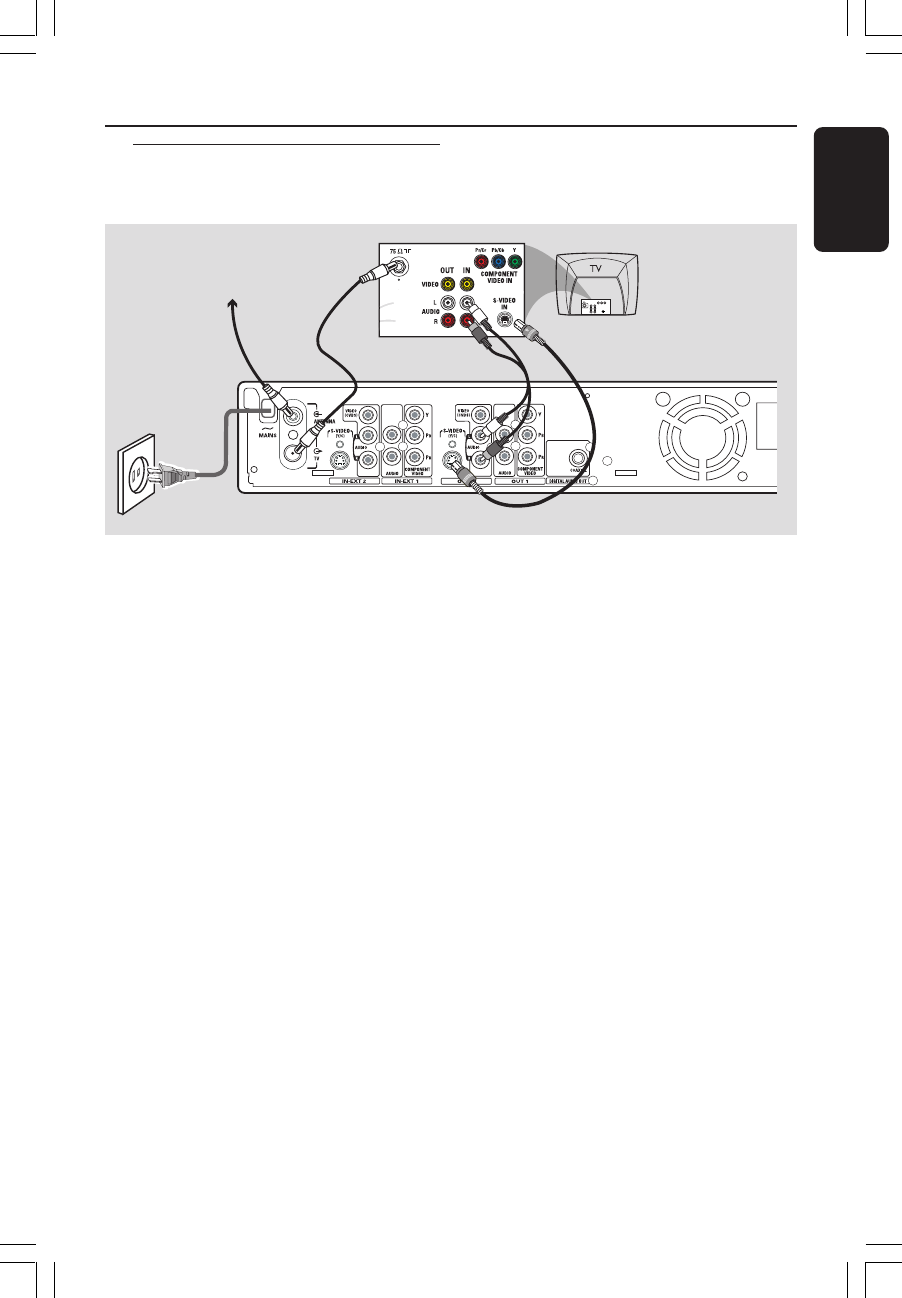

Option 2 : Using S-Video
(Y/C) jack
1
4
Use an audio cable (red/white) to
connect the DVD recorder’s
AUDIO L/R (OUT 2) jack to the audio
input jack at the back of your TV set (or
labeled as AV In or Audio In.)
5 Connect the power cable from the DVD
recorder’s ~ MAINS to the power
supply.
6 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
➜ The message 'IS THE TV ON?'
appears on the display panel.
7 Turn on the TV power. Select the correct
Video In channel at the TV (see page 10.)
➜ The first installation menu
{ Language and Country } will appear
on the TV.
8 Proceed to page 24 to continue the first
installation.
