RQT9431
Before connection, turn off the mains for all connected equipment and read the appropriate operating instructions.

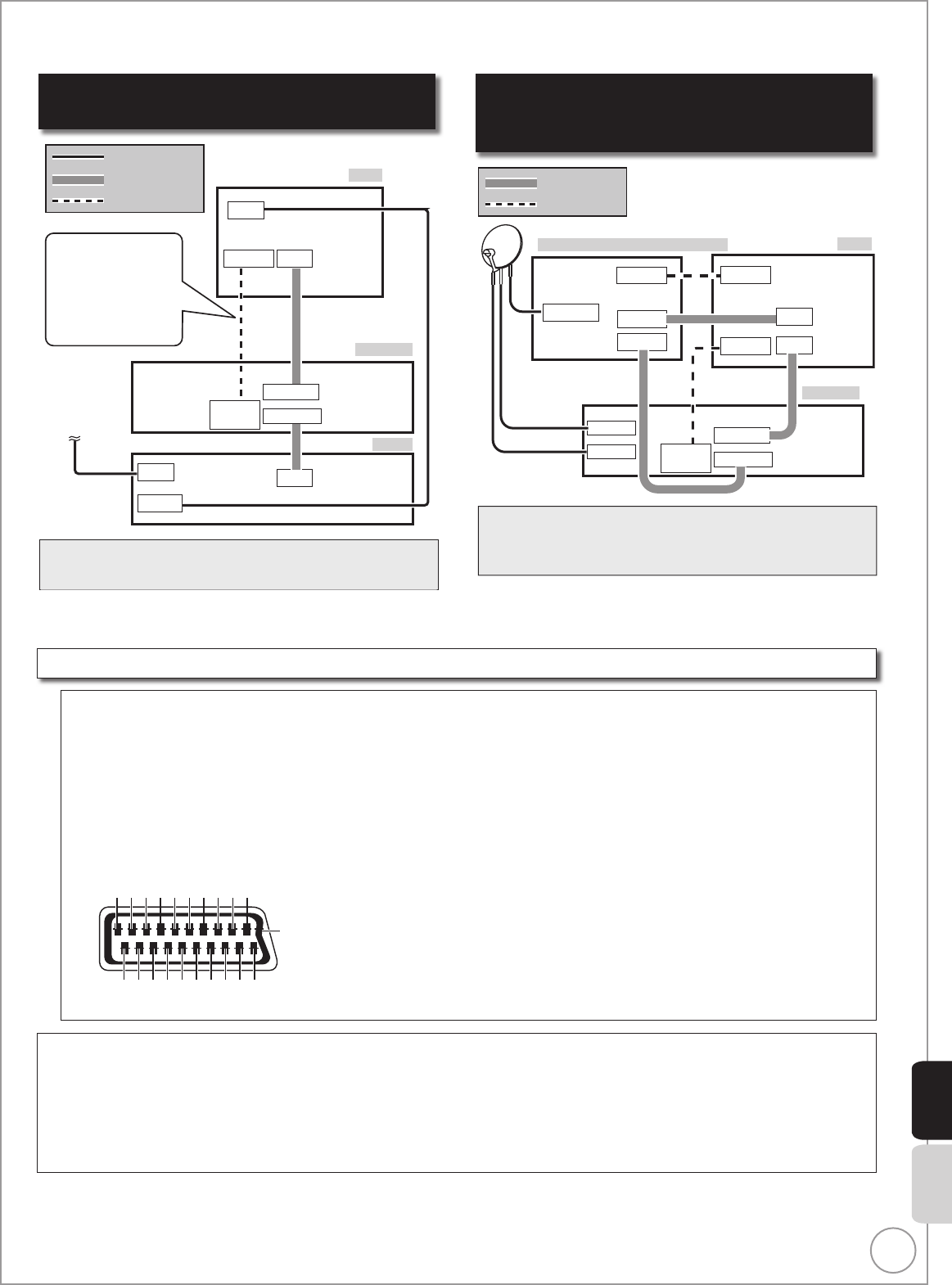

Adding a VCR: Connecting to a Television
and a Video Cassette Recorder
RF IN
AV
RF IN
HDMI AV
OUT
RF OUT
AV
This unit
TV
VCR
HDMI cable
21-pin Scart cable
RF coaxial cable
AV1(TV)
AV2 (EXT)
HDMI IN
To the aerial
You can enjoy
high-quality
picture by adding
the HDMI cable
connection (➔ 10).
To record from a VCR
Refer to “Recording from an External Device” (➔ 63).
Adding a Digital Satellite or Cable Receiver:
Connecting to a Television and a Digital
Satellite or Cable Receiver
HDMI AV
OUT
AV1(TV)
AV2 (EXT)
DISH IN 1
DISH IN 2
DISH INPUT
AV/TV
AV/VCR
HDMI OUT
AV
AV
HDMI IN
HDMI IN
Digital satellite or cable receiver
This unit
TV
HDMI cable
21-pin Scart cable
To record from a digital satellite or cable receiver
Refer to “Recording from a Satellite or Cable Receiver”
(➔ 62).
Your existing dish may require an upgrade to allow additional
satellite outputs.
21-pin Scart terminal
The 21 pin Scart terminal transmits both input
and output signals for picture and sound.
TVs equipped with the same type of terminal
can be connected here.
This type of terminal is also called Peritel,
Euro Connector and Euro AV.
A
( V
V1 Scart terminal (TV)
A
A
V X
V2 Scart terminal (EXT)
1 Audio output CH2 (R) 1 Audio output CH2 (R)
2 Audio input CH2 (R) 2 Audio input CH2 (R)
3 Audio output CH1 (L) 3 Audio output CH1 (L)
4 Audio ground 4 Audio ground
5 Blue ground 5 Blue ground
6 Audio input CH1 (L) 6 Audio input CH1 (L)
7 Blue output 7 Blue input
8 Switching voltage output 8 Switching voltage input
9 Green ground 9 Green ground
10 Q Link control signal 10 Reserved
1 1 Green output 1 1 Green input
12 Reserved 12 Reserved
13 Red ground 13 Red ground
14 Blanking ground 14 Blanking ground
15 Red output / chrominance output 15 Red input / chrominance input
16 Blanking output 16 Blanking input
17 V ideo output ground 17 V ideo output ground
18 V ideo input ground 18 V ideo input ground
19 V ideo output / luminance output 19 V ideo output
20 V ideo input 20 V ideo input / luminance input
21 Ground 21 Ground
• When the unit is connected to a
Q Link compatible TV with a fully wired 21 pin
Scart cable, you can use convenient functions
of Q Link.
1 3 5 7 9 11 13 15 17 19
2 4 6 8 10 12 14 16 18 20
21
Using a fully wired 21-pin Scart cable
You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television
(➔ 84).
You can enjoy high-quality viewing by connecting the unit to an RGB compatible television when you are viewing
in the standard definition (SD) quality. Set “AV1 Output” in the Setup menu to “RGB 1 (without component)” or
“RGB 2 (without component)” (➔ 102).
“AV2 Input” settings in the Setup menu (➔ 102).
–
–
–
•
