110
RQT9431

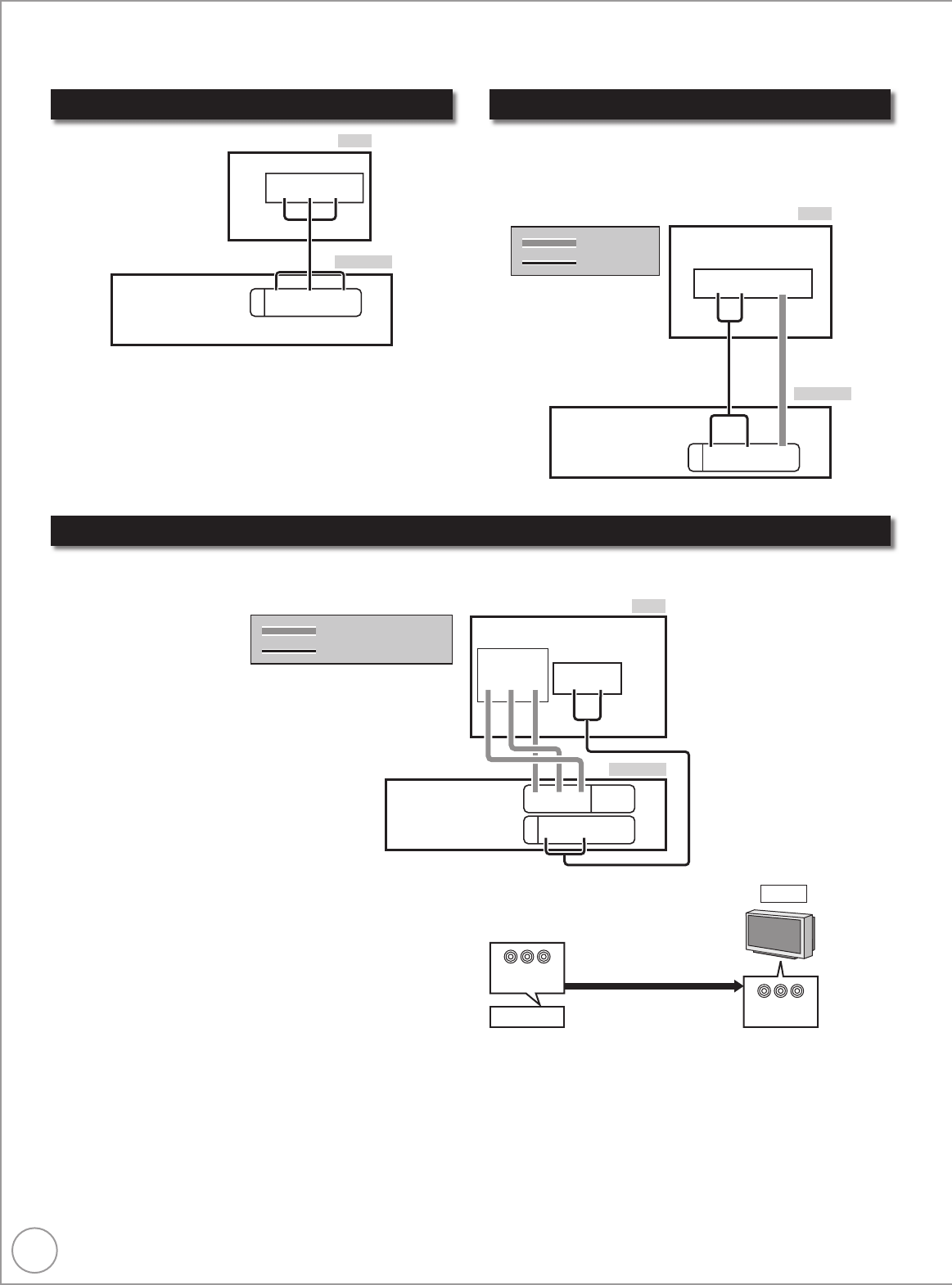

You can connect this unit to a TV using the audio/video (AV) cable, S Video cable or component video cables instead of the 21-
pin Scart cable (➔ 10, 11, 12, 109).
Using an Audio/Video Cable (not included)
TV
This unit
AUDIO IN
VIDEO
IN
RL
VIDEO
R - AUDIO - L
OUT
Using an S Video Cable (not included)
The S VIDEO OUT terminal achieves a more vivid picture
than the VIDEO OUT terminal. (Actual results depend on the
television.)
S VIDEO
IN
AUDIO IN
RL
S VIDEO
R - AUDIO - L
OUT
This unit
TV
Audio cable
S Video cable
Using Component Video Cables (not included)
The COMPONENT VIDEO OUT terminals on this unit can be used for either interlace or progressive output (➔ 135) to provide a
purer picture than the S VIDEO OUT terminal.
P
R
P
B
Y
COMPONENT
VIDEO IN
P
R
P
B
Y
COMPONENT
VIDEO OUT
R - AUDIO - L
OUT
AUDIO IN
RL
This unit
TV
Audio cable
Component video cables
Required settings
Set “HDMI Video Mode” to “Off” (➔ 102).
Set “AV1 Output” to “Video (with component)” or “S Video
(with component)” (➔ 102
).
Set “Component Resolution” to the item compatible with
connected equipment (➔ 102).
Notes
If you have a regular television (CRT: cathode ray tube)
Progressive output may cause some flickering, even if it is
progressive compatible. Set “HDMI Video Mode” in the Setup
menu to “Off” and “Component Resolution” in the Setup menu
to “576i/480i” if you are concerned about it (➔ 102).
This is the same for multi-system televisions using PAL mode.
•
•
•
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
This unit
Use component output
with progressive “Off”.
CRT
•
Additional Connections
