Chapter 4 143
ESA Functional Tests
Frequency Response (Flatness)
ESA Functional Tests

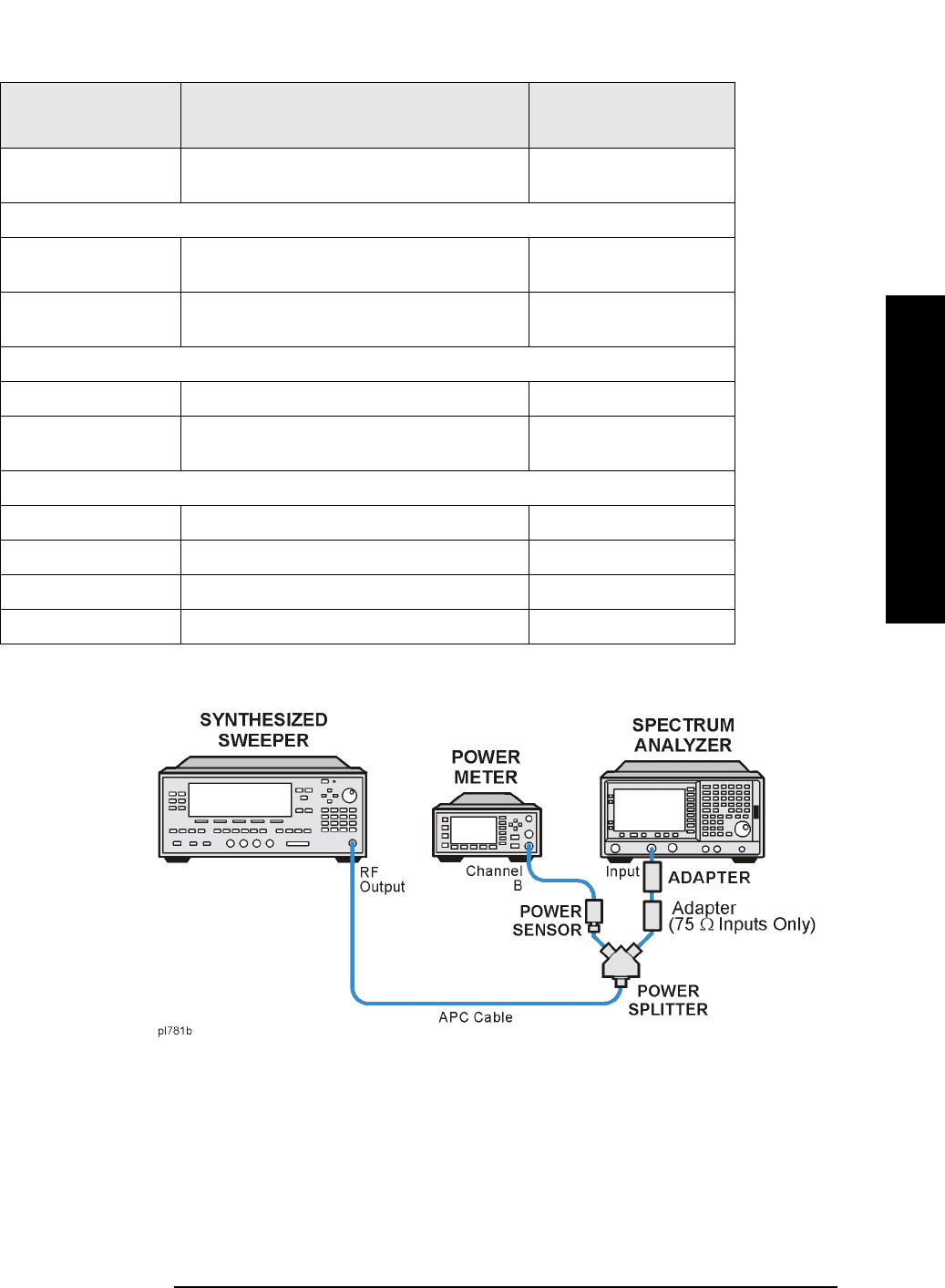

Figure 4-3 Equipment Setup
Procedure
1. Zero and calibrate the power meter and power sensor as described in the power meter
operation manual.
Type-N (m), to APC
3.5(m)
1250-1743
Cables
(2) APC 3.5mm (36
in)
E4407B and E4408B only 8120-4921 or 11500E
BNC (m) both ends,
(48 in)
10503A
Additional Equipment for 75-Ohm Input
Pad, minimum loss 11852B
Type-N (f), to BNC
(m)
1250-1534
Miscellaneous
Power Meter EPM-441A (E4418A)
Power Sensor, 75 Ω 8483A
Power Sensor, 50 Ω 8485A
Power Splitter 11667B
Item
Critical Specifications
(for this test)
Recommended
Agilent Model
