Relay Output: The unit may be configured to activate a relay output when motion detection is
present. Select either 1, 2, 1+2 (both relays), or None.
Link to Event: Selecting Yes in this menu will activate the event record speed when activity detection
is present.
Intrusion Detection Setup
If Intrusion is selected in Motion Detection Type field, the following parameters are enabled:
Sensitivity: Rotate the Shuttle to change the motion detection sensitivity, 10 being the most
sensitive.
Rejection: Configure the unit’s false alarm rejection feature by selecting Low, Medium, or High.
These settings are based on the number of simultaneously triggered zones and the persistence of
motion in a scene. The Low setting is the most sensitive to motion. The Medium setting will filter out
most false alarm situations due to sudden luminance changes over the whole scene (clouds passing
over). The High setting will filter out sudden luminance changes as well as spurious motion events
that do not persist for a number of frames (a bird flying past the lens).
Target Size: This setting is the minimum number of zones (from the 16 x 16 grid) that must be
activated simultaneously before it is considered to be valid motion.
Link To Alarm: Select the alarm number that you wish to activate when motion detection is activated.
q Main Menu Motion Detection Setup Active Zones
Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the
current video image allowing for precise activity zone setup. The disabled zones will be tinted. The
enabled zones will be clear.

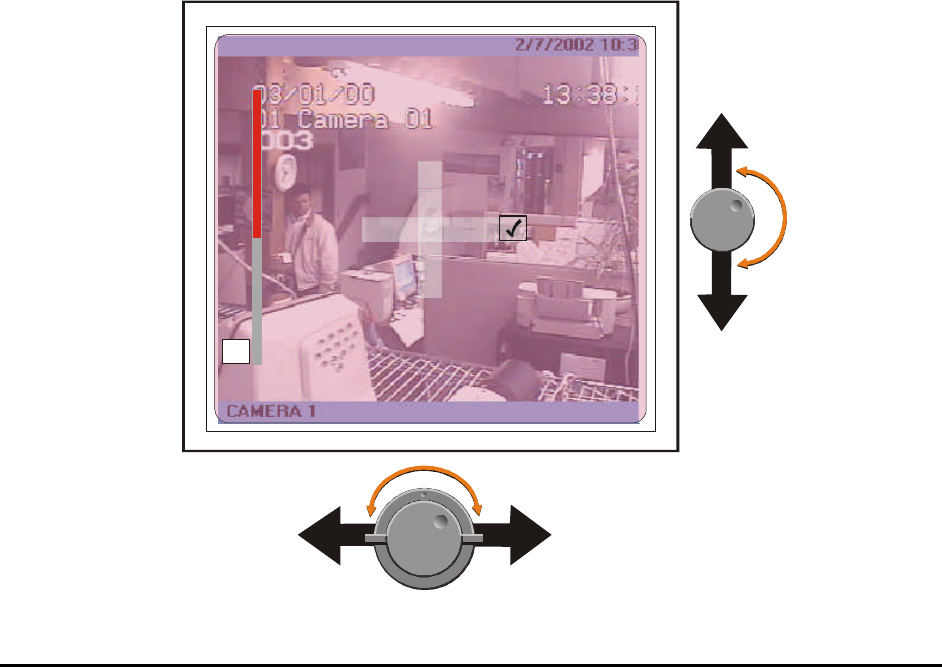

Activity Grid Setup Screen
