PRV-LX1
En
Names of Parts

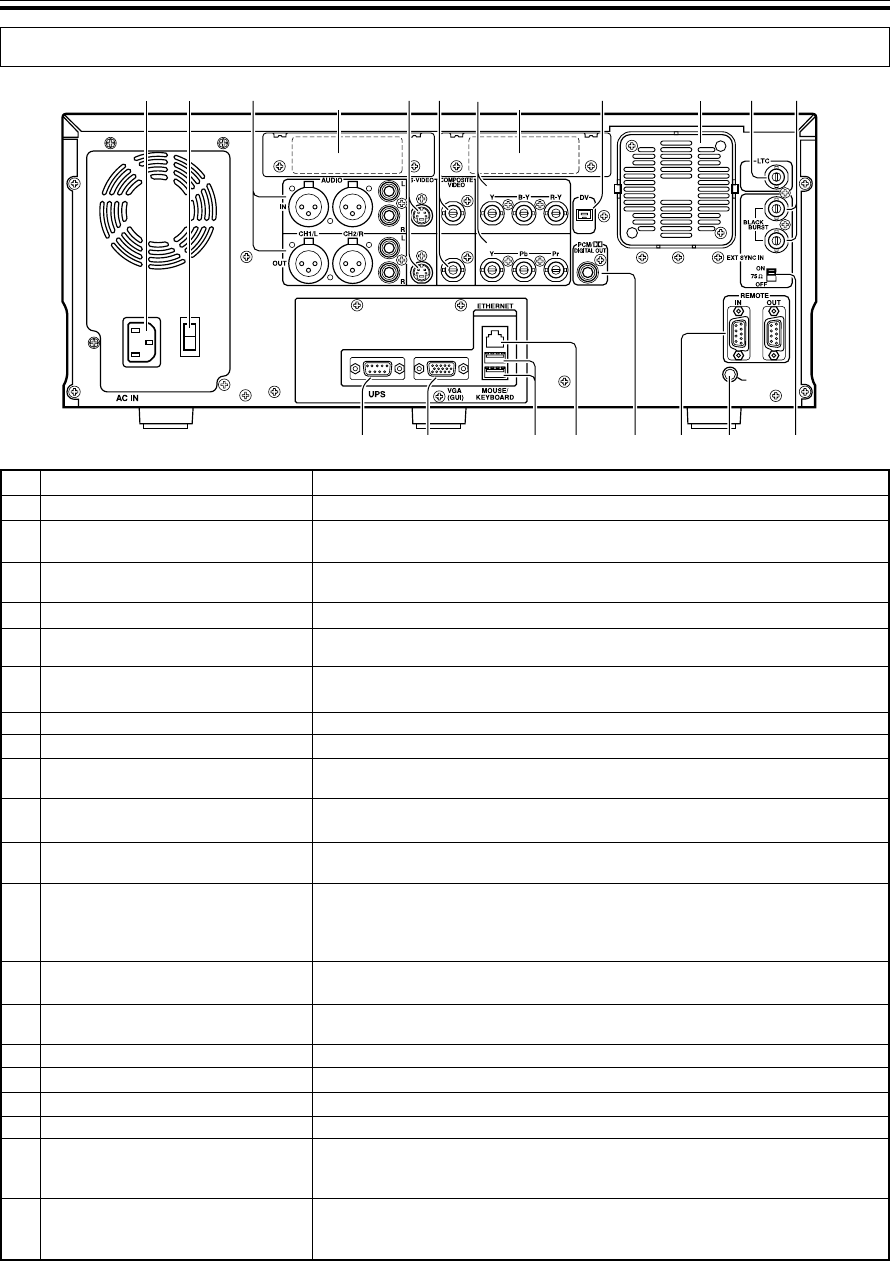

Rear Panel Facilities
SIGNAL GND
19 20
12 3 456 7 8 910
1112131415161718
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Name
AC IN connector
Main power switch
AUDIO CH1/L CH2/R IN/OUT
connectors
S-VIDEO IN/OUT connectors
COMPOSITE VIDEO IN/OUT
connectors
COMPONENT VIDEO IN/OUT
connectors
DV connector
Fan motor
LTC connector (*2)
EXT SYNC IN and through
Output connector
Terminate switch
SIGNAL GND terminal
REMOTE IN/OUT connectors
PCM/2 DIGITAL OUT connector
ETHERNET connector
MOUSE/KEYBOARD connectors
VGA (GUI) connector
UPS connector
Expansion slot 1
Expansion slot 2
Function
Connect to power cord.
When set to ON, the unit enters standby condition and front panel indicator
lights orange.
Input/output connectors for analog audio CH1/L CH2/R signals.
Input/output connectors for S-VIDEO video signal. Output is compatible with S2.
Input/output connectors for analog composite video signals.
Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs.
Input/output connectors for analog component video signals. (*1)
Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs.
Connect to DV connector of professional use VTR or similar component.
Fan motor for cooling internal parts.
Connector for obtaining time code from VHS, VTR, etc.
Note: Use a coaxial cable (impedance: 75-ohm) to connect with BNC plugs.
Use for connecting external sync signal, and for pass-through signals.
Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs.
Use to terminate sync signal. Set to ON when used alone or when connected
to a terminating unit.
Ground terminal for signals. When using the unit in environments exposed to
high levels of electronic noise, malfunctions may occur to mouse and other
control devices. In such cases, connect a ground wire between the
components to reduce the noise. This is not an electric safety ground.
RS-422A compatible external control connector. The protocol is compatible
with SONY format. (*3)
Digital audio output connector.
Note: Use a coaxial cable (impedance: 75-ohm) to connect with RCA in plugs.
Use for network connection.
Allows connection of a USB mouse, USB keyboard and USB HDD to the unit.
(*4)
Connect to VGA monitor for expanded operation. (*5)
Connect when using UPS.
Provided to allow installation of the optional SDI AES/EBU input board (PRA-
BD11).
÷ Consult your dealer regarding installation.
Provided to allow installation of the optional SDI AES/EBU output board (PRA-
BD12).
÷ Consult your dealer regarding installation.
