Recording
After construction of an edit list, or after loading a
previously recorded edit list, pressing the Function
Menu’s APP section = [Auto Capture] = [EDL
Command] = EDL REC button will cause recording
to be performed automatically in accordance with
the constructed list. In accordance with the recorded
IN/OUT points, the external VTR is automatically
rewound to the designated IN point, and recording
begins automatically. When a designated OUT point
is detected, the unit automatically enters the REC
pause/stop mode.
By using the APP section = [Auto Capture] =
[Chapter Point] command to record chapter point
settings in an edit list, not only REC pause positions,
but chapter marks can also be inserted at optional
points.
The session from recording start to recording stop
will be considered an independent title (clip). During
recording, the playback video/audio signals are
output, but when recording ends, the screen reverts
to the Function Menu display.
When automatic chapter mark insertion has been
selected, however, a chapter mark is inserted
automatically at regular intervals; in this case, even if
“Chapter (Pause)” is designated, no chapter mark
will be inserted when the unit enters the REC pause
mode. The session from recording start to recording
stop will be considered an independent title (clip).
During recording, the playback video/audio signal will
be output, but when recording is completed, the
screen will return to the Function Menu display.
7 Edit List (EDL) Recording
The Edit List (EDL) function allows automated
recording of consecutive multiple IN/OUT points by
setting the points on an Edit List (EDL). This recorder
allows formation of an Edit List by using the
contents set with the Function Menu’s APP section
= [Auto Capture] = [IN/OUT Point] command. By
pressing the Add to EDL button, the IN/OUT points
set are added to the edit list.

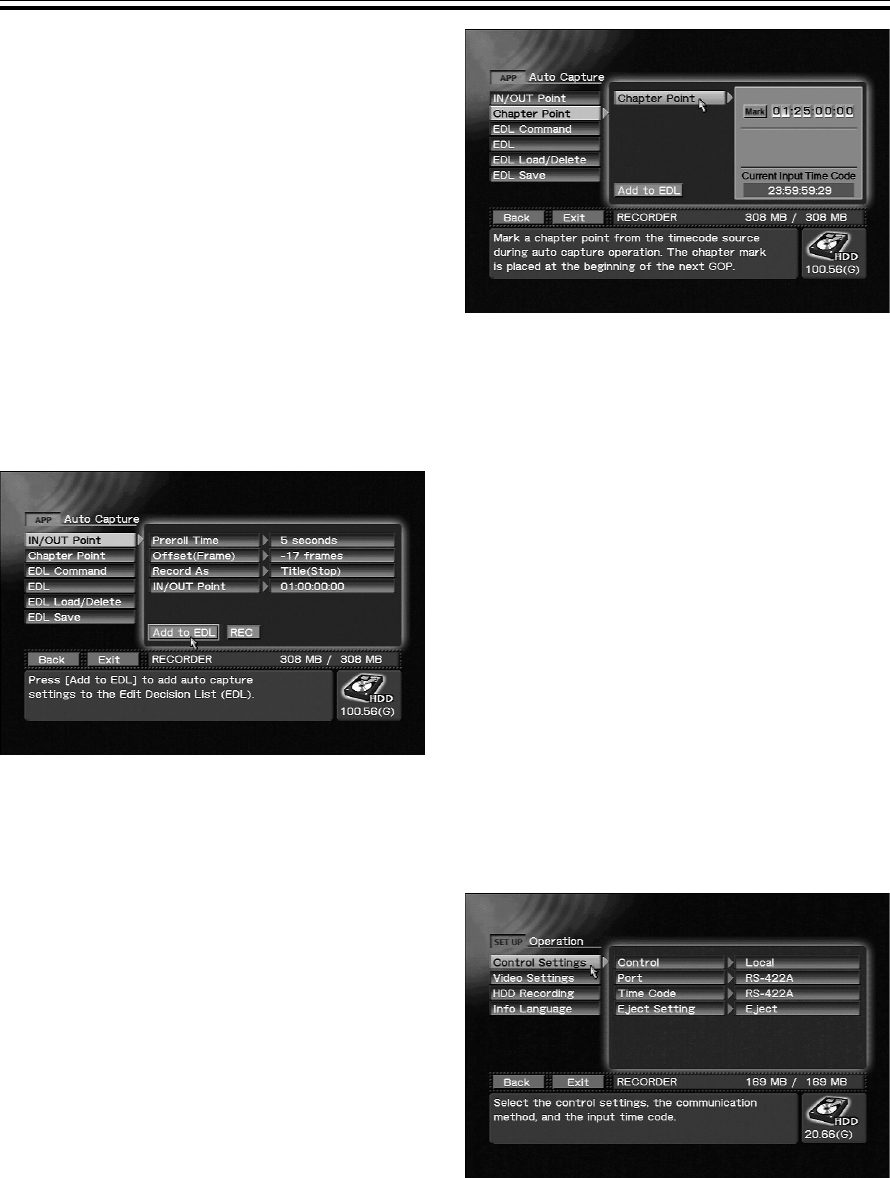

APP section = [Auto Capture] = [IN/OUT Point]
Adding to EDL
APP section = [Auto Capture] = [Chapter Point]
Settings for Automatic Recording
When using an external VTR with automatic
recording, the Function Menu’s SET UP section =
[Operation] = [Control Settings] command allows
independent settings to be made for the command
line and time-code acquisition for controlling the
external VTR. To perform automatic recording, set
the SET UP section = [Operation] = [Control
Settings] = [Control] command to “Local”.
The SET UP section = [Operation] = [Control
Settings] = [Port] command allows setting of the
command line to “RS-422A”/Disabled (or
“IEEE1394”). When the external VTR cannot be
controlled (such as a VTR with only an LTC output),
set settings to “Disabled” and start VTR playback
manually from before the IN point to record
according to the entered time-code.
Use the SET UP section = [Operation] = [Control
Settings] = [Time Code] command to set the time
code line to either “RS-422A” or “LTC” (or
“IEEE1394”).
When “DV” is selected as input, the “IEEE1394”
interface is added to the possible selections.
SET UP section = [Operation] = [Control Settings]
