AVerMedia NV1000/3000/5000/7000 User’s Manual

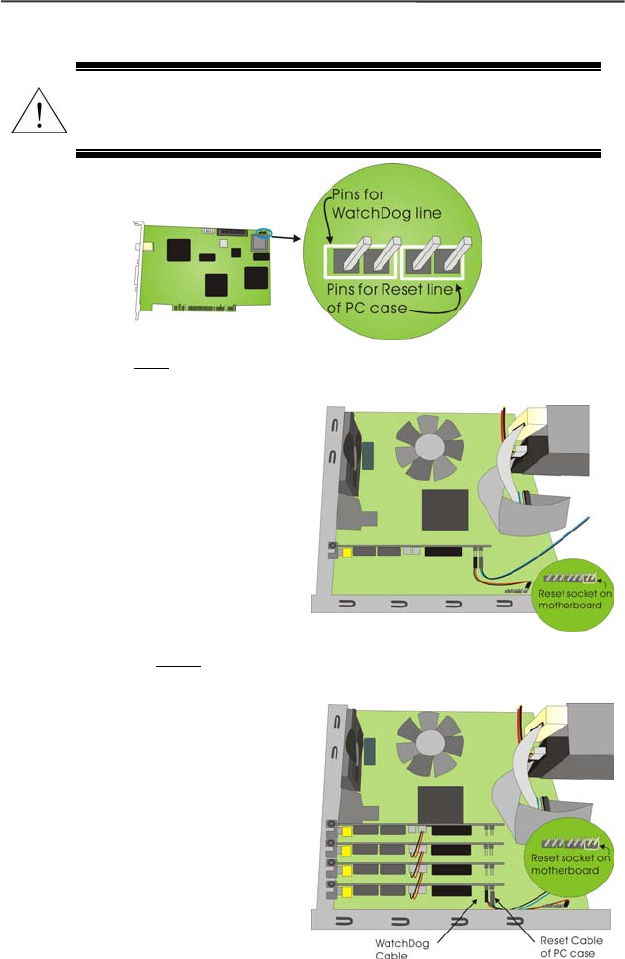

1.7.2 Connecting the Watchdog line to NV 7000
Before installing the video card, turn off the computer’s power,
unplug the power cable and disconnect all other cables attached to
the back of the computer.
When you install ONE
NV 7000 video capture card, please follow the instruction
to connect the Watchdog line.
Remove the reset cable connector of your
computer case, and plug in the slot.
Please plug Watchdog cable connectors in
both Video Capture Card slot and
motherboard slot as the right picture.
When you install FOUR
NV7000 video capture cards, please follow the
instruction to connect the Watchdog line.
Remove the reset cable connector of your
computer case, and plug in the slot. Plug
Watchdog cable connectors in a slot of
one Video Capture Cards and plug another
connector into motherboard slot as the
right picture.
