20
Connecting Your AV Components
Video Connections
Use a composite video cable to connect the DR-L30’s VIDEO
VIDEO 2 IN to a composite video output on your satellite tuner, etc.,
as shown. Your TV must also be connected via composite video.
■ Audio Connections
Use an RCA/phono audio cable to connect the DR-L30’s L/R
VIDEO 2 IN connectors to the analog audio outputs on your satellite
tuner, etc. as shown.
Use a composite video cable to connect the DR-L30’s VIDEO 1
VIDEO OUT to a composite video input on your VCR, use another
composite video cable to connect the DR-L30’s VIDEO 1 VIDEO IN
to a composite video output on your VCR as shown.
Use an RCA/phono audio cable to connect the DR-L30’s L/R
VIDEO 1 AUDIO OUT connectors to the analog audio inputs on
your VCR, use another RCA/phono audio cable to connect the DR-
L30’s VIDEO 1 AUDIO IN connectors to the analog audio outputs
on your VCR as shown.
Notes
• The DR-L30 must be turned on (not Standby) in order to record.
• When you record signal from VIDEO AUDIO OUT jack on the
unit, change the mode SURROUND to STEREO.

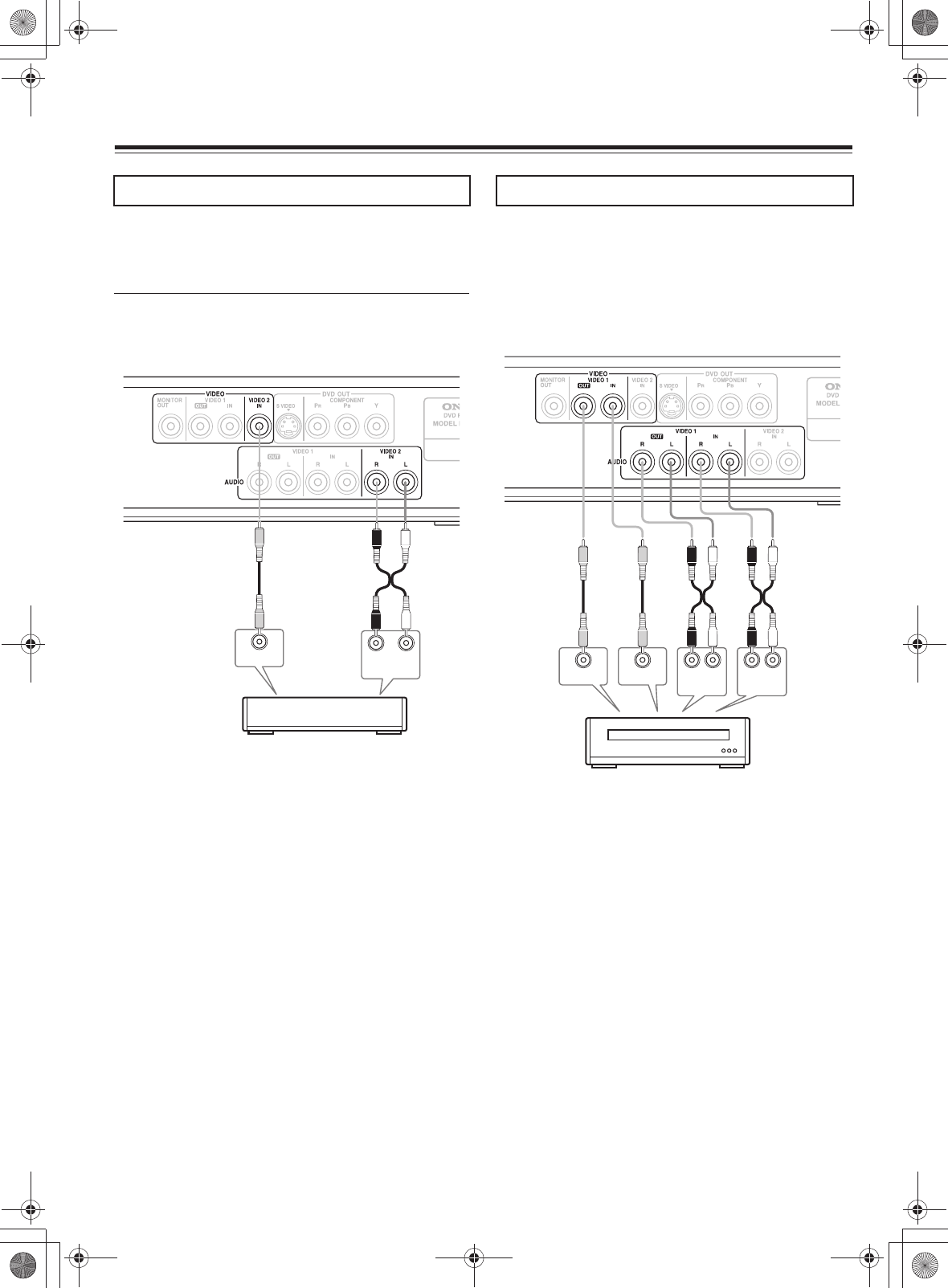

Connecting a Video Device
LR
VIDEO OUT
AUDIO
OUTPUT
Satellite tuner,
etc.
Connecting a VCR for Recording
LR
VIDEO OUT
AUDIO
OUTPUT
LR
VIDEO IN
AUDIO
INPUT
VCR
