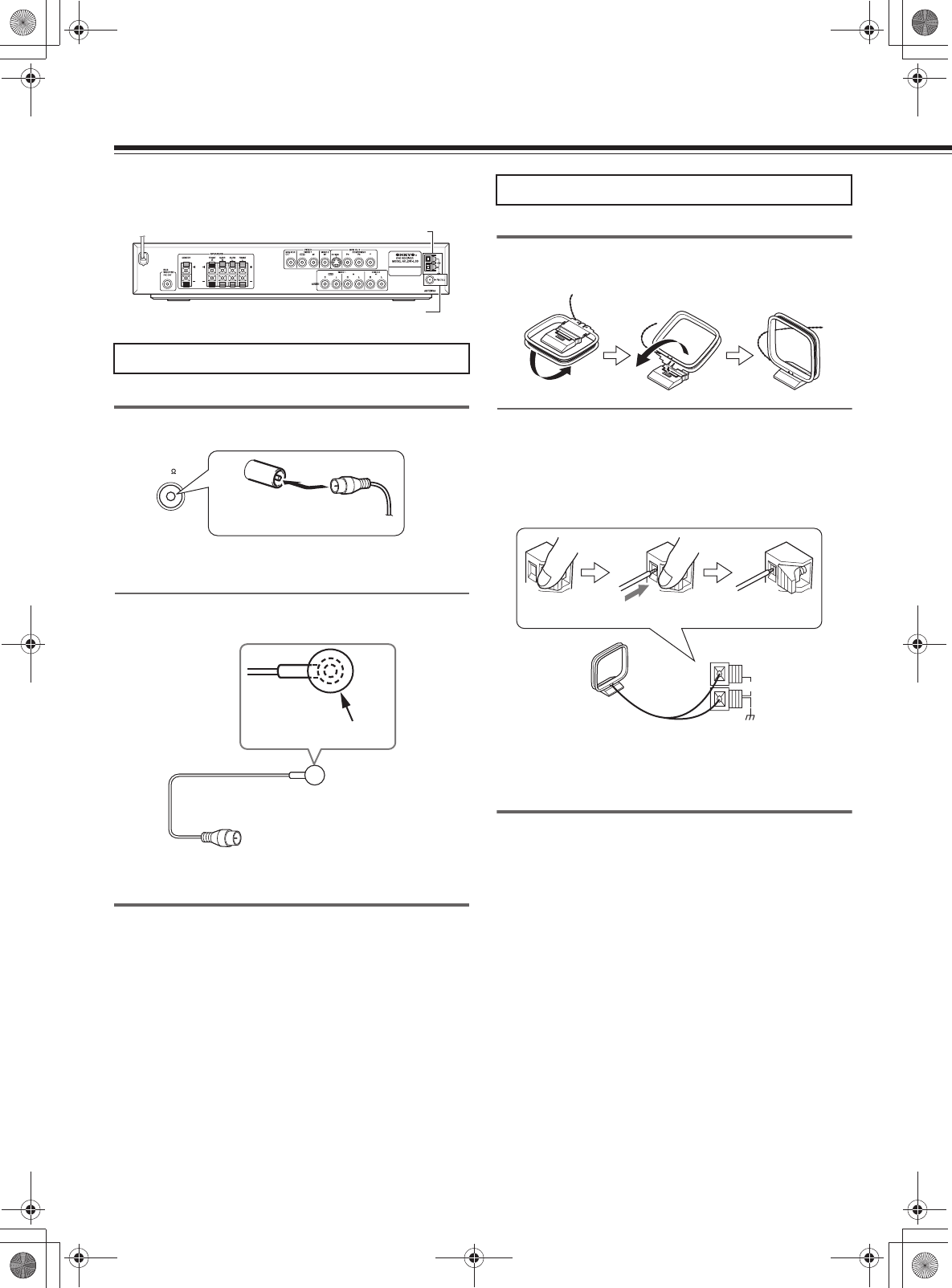

Connecting the Antenna
This chapter explains how to connect the supplied indoor FM antenna
and AM loop antenna, and how to connect commercially available
outdoor FM and AM antennas.
The supplied indoor FM antenna is for indoor use only.
1 Attach the FM antenna, as shown.
Once your DR-L30 is ready for use, you’ll need to tune into
an FM radio station and adjust the position of the FM antenna
to achieve the best possible reception.
2 Use thumbtacks or something similar to fix the
FM antenna into position.
Caution
Be careful that you don’t injure yourself when using
thumbtacks.
If you cannot achieve good reception with the supplied indoor FM
antenna, try a commercially available outdoor FM antenna instead
(see page 25).
The supplied indoor AM loop antenna is for indoor use only.
1 Assemble the AM loop antenna, inserting the
tabs into the base, as shown.
2 Connect both wires of the AM loop antenna to
the AM push terminals, as shown.
(The antenna’s wires are not polarity sensitive, so they can be
connected either way around.)
Make sure that the wires are attached securely and that the
push terminals are gripping the bare wires, not the insulation.
Once your DR-L30 is ready for use, you’ll need to tune into
an AM radio station and adjust the position of the AM antenna
to achieve the best possible reception. Keep the antenna as far
away as possible from your DR-L30, TV, speaker cables, and
power cords.
If you cannot achieve good reception with the supplied indoor AM
loop antenna, try using it with a commercially available outdoor AM
antenna (see page 25).
Connecting the Indoor FM Antenna
AM
FM
FM
75
Insert the plug fully
into the socket.
Thumbtacks, etc.
Connecting the AM Loop Antenna
AM
Push
Insert wire
Release
