Connecting Speakers
Use SKC-L30 for the center speaker, and SKM-L30 for the front (left
and right) and surround speakers.
■ Making connections to the speaker
terminals
1 Press and hold the lever.
2 Insert the exposed wires on the end of the
cable.
3 Release the lever.
Caution
To prevent damage to the circuitry, never allow the
positive (+) and negative (–) or left (L) and right
(R) speaker wires to touch.
Notes
• The terminals on the speakers and subwoofer (+ and –) are given
different colors for ease of identification. Attach the speaker cables
to terminals of the same color.
• Connect the colored side of the provided speaker cables to the plus
(+) speaker terminals.
• If you accidentally connect the wrong cable (+ or –) to a speaker
terminal or the wrong cable to either the left or right speakers, the
speakers will output unnatural sound.

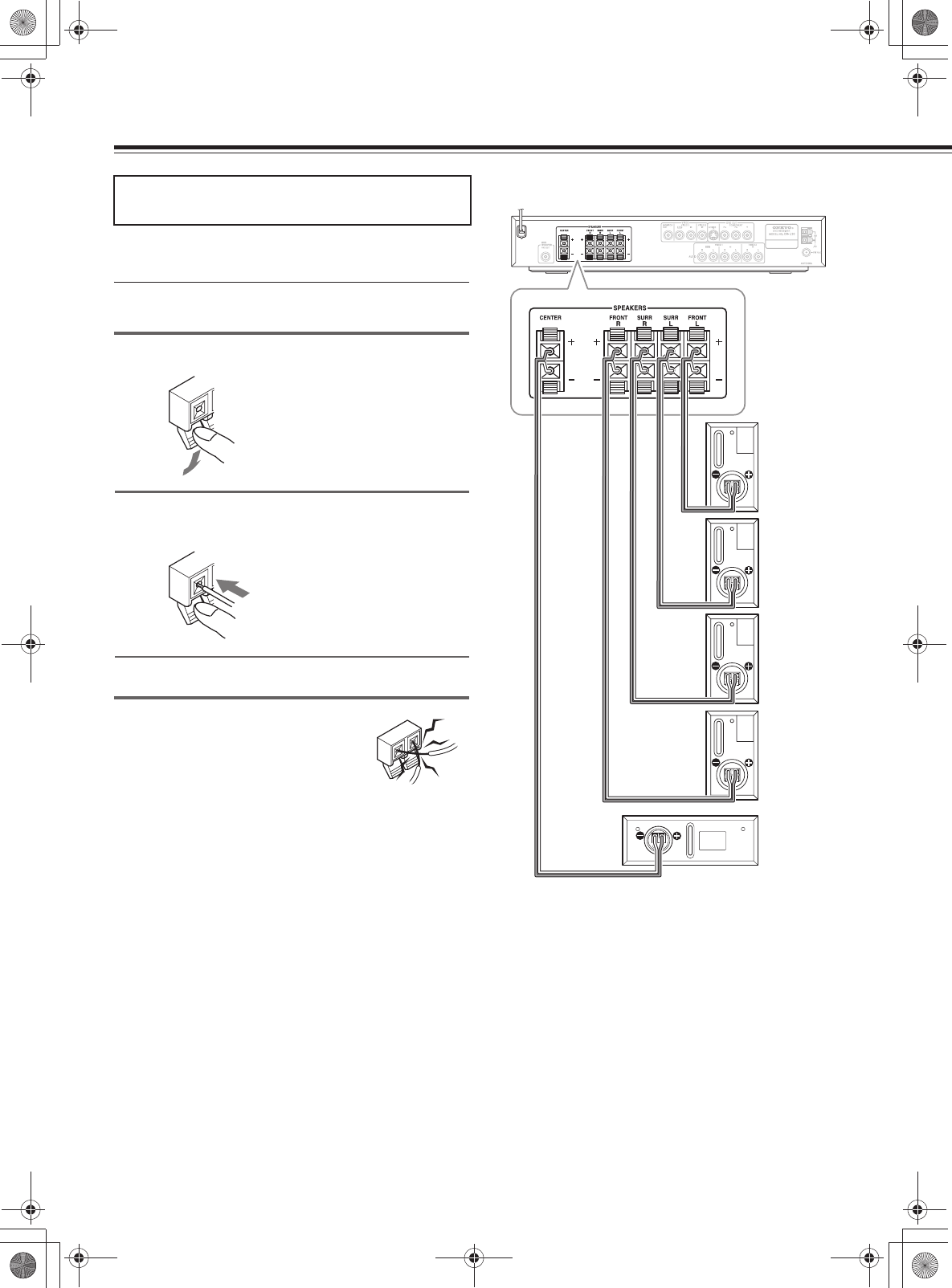

Connecting the front (left and right),
center, and surround speakers
No!
DR-L30
SKM-L30
surround
right
speaker
(Grey)
SKM-L30
front right
speaker
(Red)
SKC-L30
center
speaker
(Green)
SKM-L30
surround
left
speaker
(Blue)
SKM-L30
front left
speaker
(White)
