MELSEC-Q
5 PARAMETER SETTINGS
(6) Parameter setting example
The following is an example for system parameter settings including remote
master station (remote I/O network) and controlling station (PLC to PLC network).

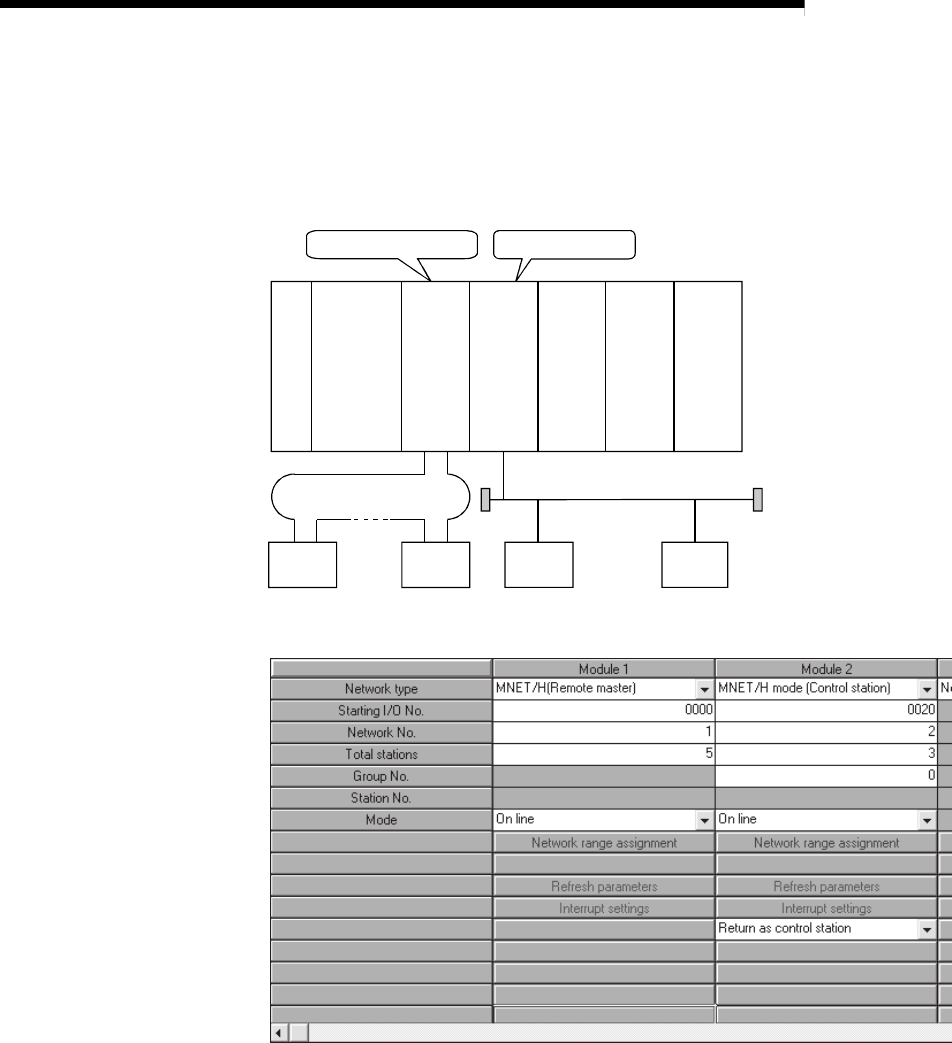

(System configuration)
QCPU
QJ71
LP21
QJ71
BR11
1MR
2NS2
PLC to PLC network
(Network No. 2)
Control station
2MP1
2NS31R1 1R5
Remote I/O network
(Network No. 1)
to
Valid module during other
station access: First module
Remote master station
Power supply
(Screen settings)
