3 - 8 3 - 8
MELSEC-Q
3 SPECIFICATIONS
(b) Using a BNC connector manufactured by Canare Electric Co., Ltd.
The following explains how to connect the BCP-C3B, BCP-C5B, or BCP-
C5FA to the cable.

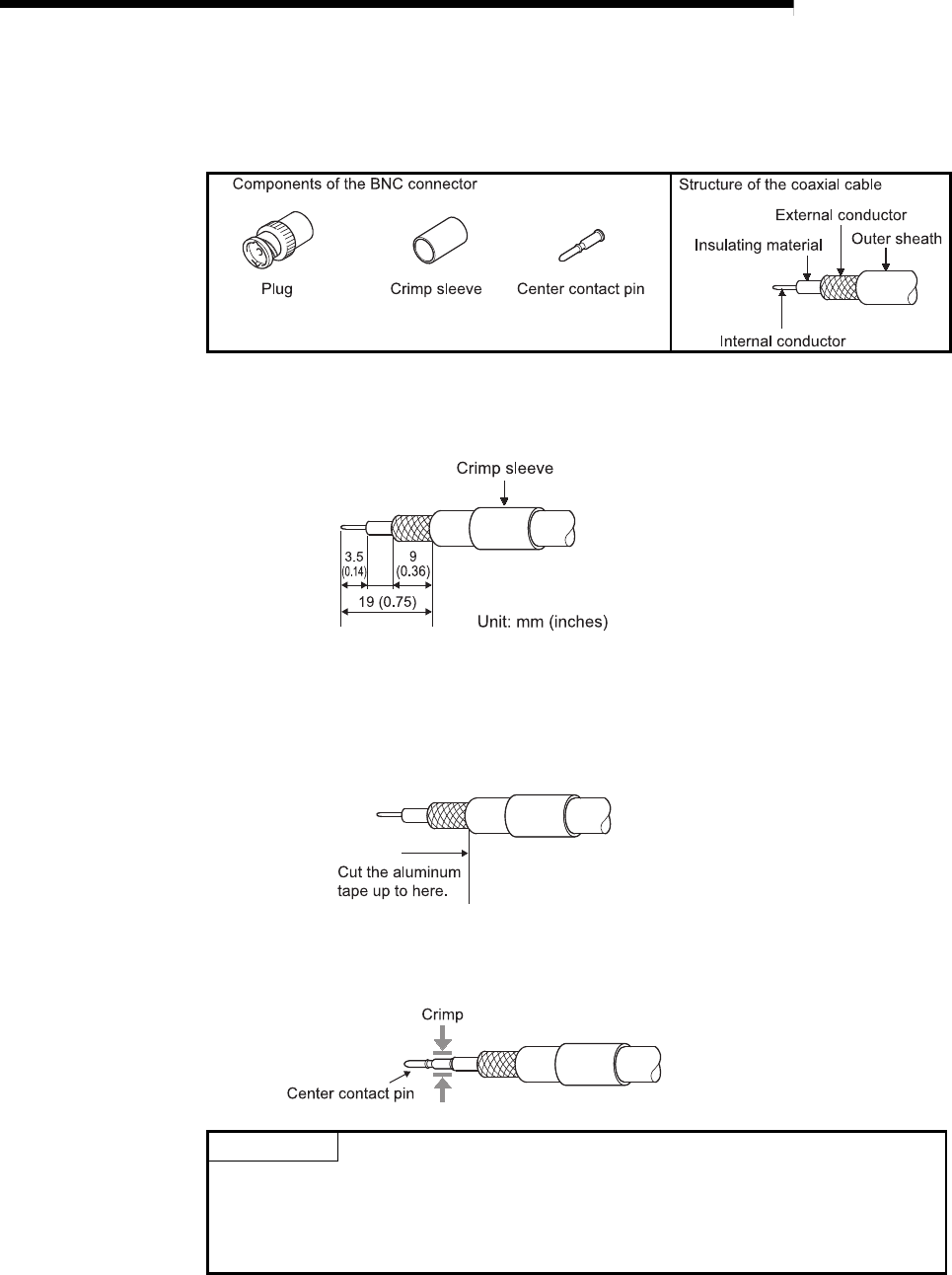

• Structure of the BNC connector and coaxial cable
• How to connect the BNC connector and the coaxial cable
1) Thread a coaxial cable through a crimping sleeve as shown in the
figure below.
When using a cable with aluminum tape, cut the tape as shown in the
figure below.
When cutting the tape, make a clean cut, without leaving any stray
pieces or loose strands. Failure to do so may cause a short circuit or
result in an improper crimp.
2) Insert a center contact pin into the internal conductor. Crimp the pin
using a crimp tool to seal the gap between the center contact pin and
the insulating material.
POINT
(1) Use a crimp tool specified for a BNC connector.
(2) Do not crimp the junction of the insulating material and the center contact pin.
(3) Horizontally insert the center contact pin into the insulating material and crimp
the pin. If the pin is on the tilt, straight it.
