2 SYSTEM CONFIGURATION
(2) Table 2.4 lists the setting items that can be set on a remote I/O module operating
as a remote I/O station (R) and the parameter setting items that can be set from
GX Developer.

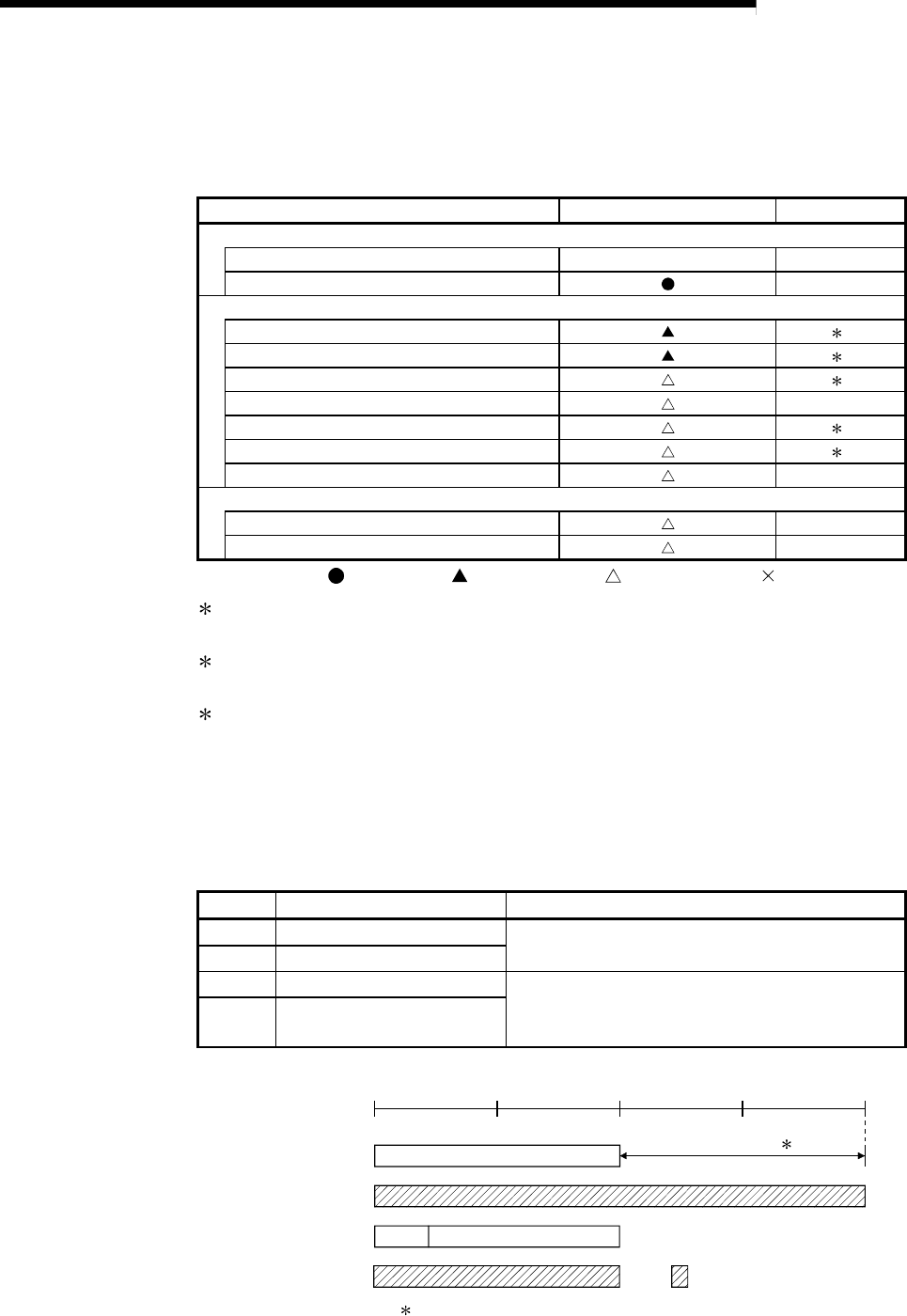

Table 2.4 Setting Items of a Remote I/O Station
Setting item Remote I/O station (R)
Reference
Network module main module switch
STATION NO. 1 to 64 Section 4.2.2
MODE Section 4.2.2
GX Developer parameter setting
PLC system
5
PLC RAS
5
I/O assignment
5
Operation setting
Section 5.1.2
Ethernet setting
6
CC-Link setting
7
Remote password setting
Section 7.12
GX Configurator setting
Initial setting
Section 5.2.1(4)
Auto refresh setting
Section 5.2.1(4)
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
5 : Refer to the User's Manual (Function Explanation, Program Fundamentals) for
the CPU module used.
6 : Refer to the Q Corresponding Ethernet Interface Module User's Manual (Basic)
(SH-080009). Note that interrupt setting is not available.
7 : Refer to the MELSEC-Q CC-Link System Master/Local Module User's Manual
(SH-080394E). Note that interrupt setting is not available.
2.2.3 Available device ranges
The remote I/O network can use the following ranges of devices inside network
modules.
Device Available Range Others
LB 0H to 3FFFH (16384 points)
LW 0H to 3FFFH (16384 points)
LX 0H to 1FFFH (8192 points) The device range (excluding that of I/O module
mounted on the host station) should be assigned to
each network module.
LY 0H to 1FFFH (8192 points)
B/W
: Available device range
X/Y
Actual I/O
LX/LY
CPU module
LB/LW
CPU module
0
3FFF
H2000H
3000H
(4096)
1000
H
(8192) (12288) (16383)
Network module
Network module
1: Expandable b
y
chan
g
in
g
from [PLC parameters] - [Device settin
g
s]
Extended 1
