3 SPECIFICATIONS

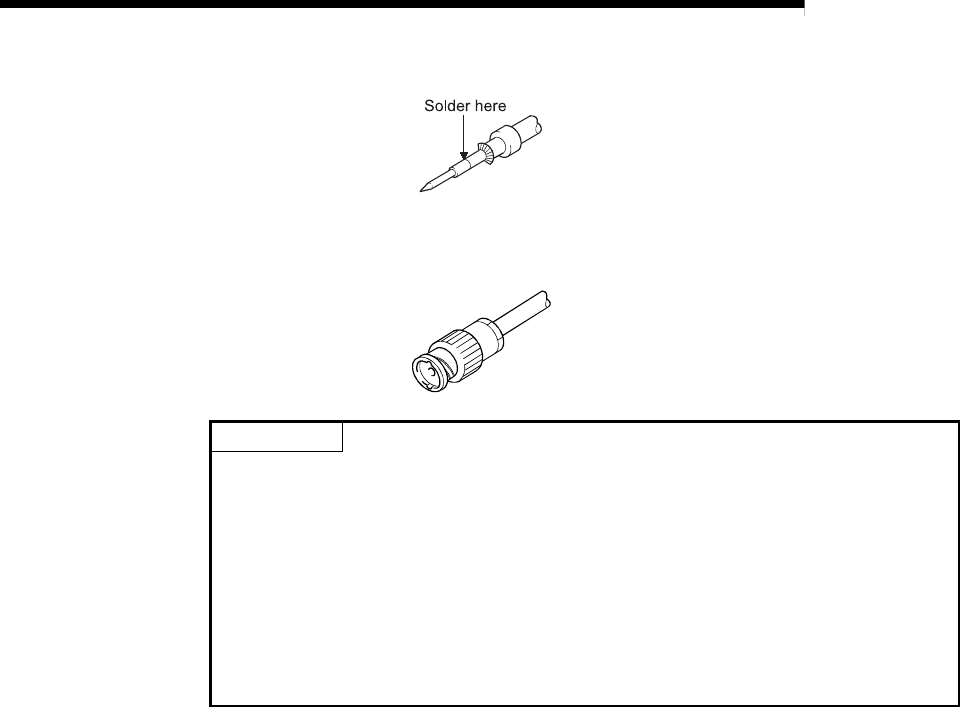

4) Solder the contact to the internal conductor.
5) Insert the connector assembly shown in 4) into the plug
shell and screw the nut into the plug shell.
POINT
(1) The following precautions should be observed when soldering the internal
conductor and contact:
Make sure that the solder does not bead up at the soldered section.
Make sure that there are no gaps between the connector and cable
insulating material and that they do not cut into each other.
Solder as quick as possible so the insulating material does not deform.
(2) Before connecting or disconnecting the coaxial connector, touch a grounded
metal object to discharge the static electricity from the human body. Failure to
do so may result in a module malfunction.
