3 SPECIFICATIONS
11) Connect between the external device and module (I/O signal) by the
switch and so on.

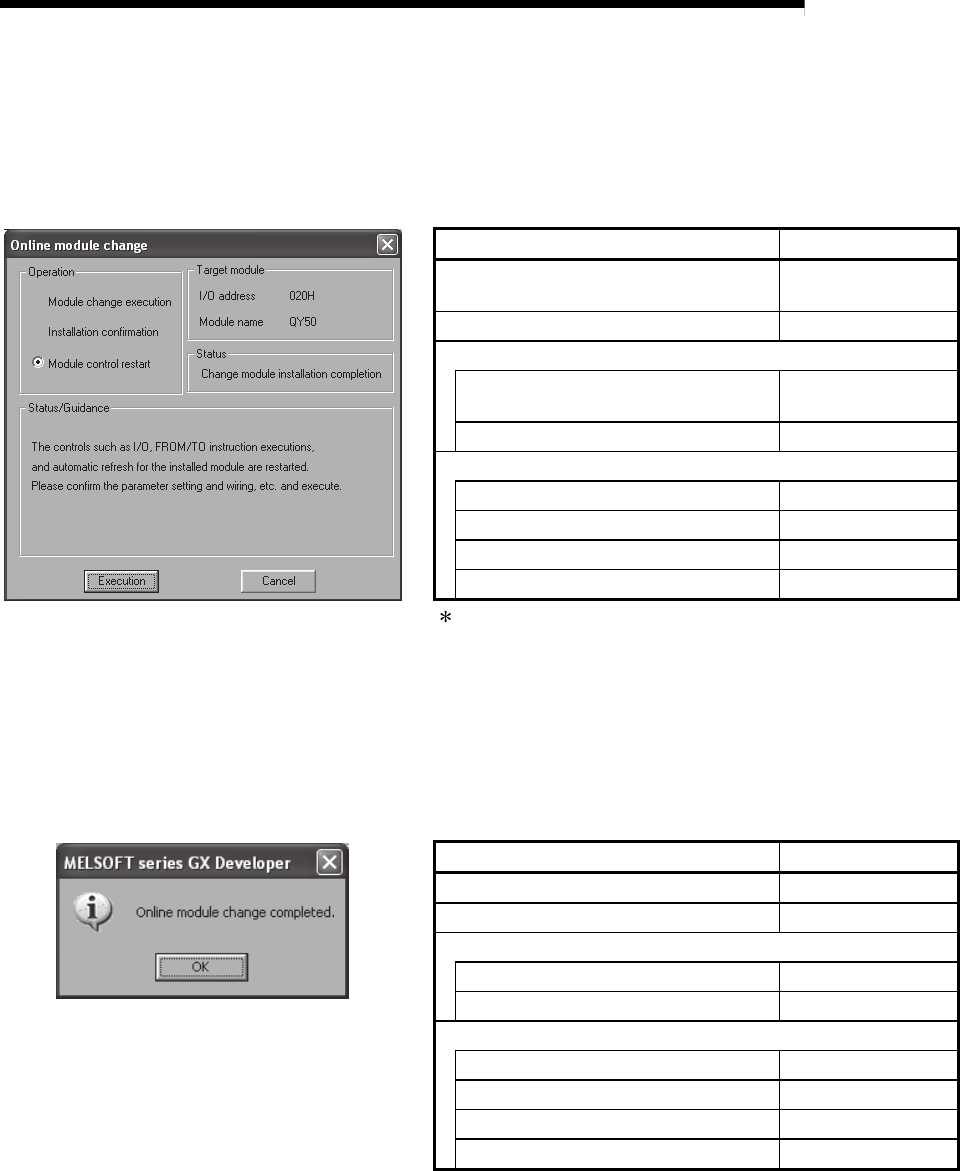

12) Mount the module, and then click the "Execution" button.
(The table below lists the communication status of the new module
when the screen below is displayed.)
Target modules and items Execute/not execute
Input module refreshing
Not execute
(data are retained)
Output module refreshing Not execute
I/O combined module
Input refreshing
Not execute
(data are retained)
Output refreshing Not execute
Intelligent function module
Input refreshing Execute
Output refreshing Execute
Intelligent module automatic refreshing No processing
Buffer memory batch monitoring Execute
: If the initial settings of the intelligent function module have been
made by GX Configurator, the setting data are written in to the
intelligent function module.
13) Click the "Execution" button to start control.
14) The "Online module change completed." screen is displayed.
(The table below lists the communication status of the new module
when the screen below is displayed.)
Applicable modules and items Execute/not execute
Input module refreshing Execute
Output module refreshing Execute
I/O combined module
Input refreshing Execute
Output refreshing Execute
Intelligent function module
Input refreshing Execute
Output refreshing Execute
Intelligent module automatic refreshing Execute
Buffer memory batch monitoring Execute
