2 SYSTEM CONFIGURATION
(2) Table 2.2 lists the setting items on the remote I/O module of the remote I/O
station (R) and the parameter setting items on GX Developer.

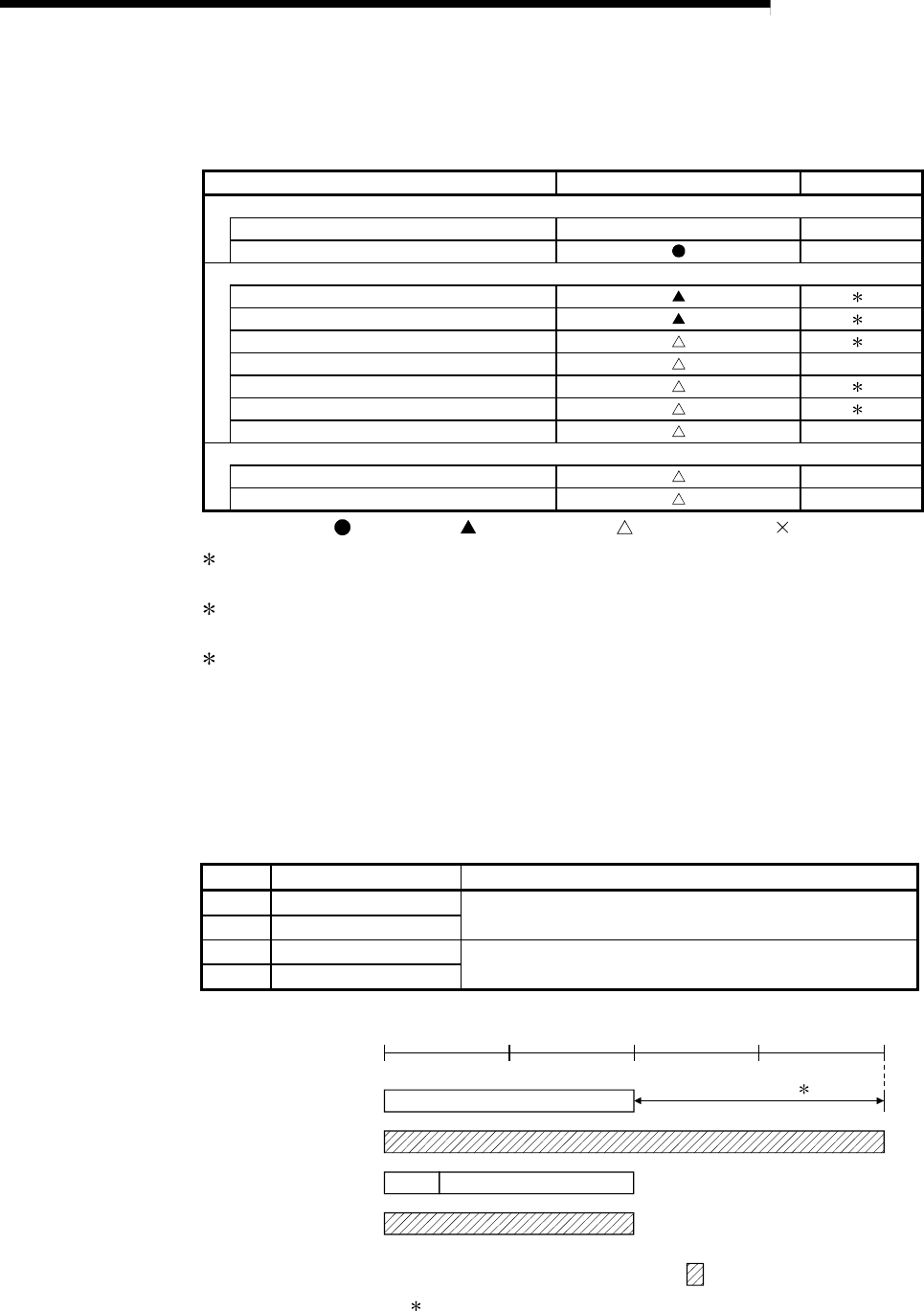

Table 2.2 Remote I/O station setting items
Setting items Remote I/O station (R) Reference
Network module switch
STATION NO. 1 to 64 Section 4.2.2
MODE
Section 4.2.2
Parameter setting on GX Developer
PLC system
4
PLC RAS
4
I/O assignment 4
Operation setting Section 5.2.1
Ethernet setting 5
CC-Link setting 6
Remote password setting
Section 7.12
GX Configurator setting
Initial setting
Section 5.2.1(4)
Auto refresh setting
Section 5.2.1(4)
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
4 : Refer to the User's Manual (Function Explanation, Program Fundamentals) for
the CPU module used.
5 : Refer to the Q Corresponding Ethernet Interface Module User's Manual (Basic)
(SH-080009). Note that interrupt setting is not available.
6 : Refer to the MELSEC-Q CC-Link System Master/Local Module User's Manual
(SH-080394E). Note that interrupt setting is not available.
2.1.3 Available device ranges
The remote I/O network can use the following device ranges within each network
module.
These device ranges indicate the remote master station.
Device Range setting Other
LB 0H to 3FFFH (16384 points)
LW 0H to 3FFFH (16384 points)
LX 0H to 1FFFH (8192 points)
The device range (excluding that of I/O module mounted on the host
station) should be assigned to each network module.
LY 0H to 1FFFH (8192 points)
: Available device range
B/W
X/Y
Actual I/O
LX/LY
CPU module
LB/LW
CPU module
Extended 1
0
3FFF
H2000H
3000
H
(4096)
1000
H
(8192) (12288) (16383)
Network module
Network module
1: Expandable by changing from [PLC parameters] - [Device settings]
