2 SYSTEM CONFIGURATION
(2) Table 2.8 lists the setting items for the remote I/O module main module for the
remote I/O station (R) and the parameter setting items from the GX Developer.

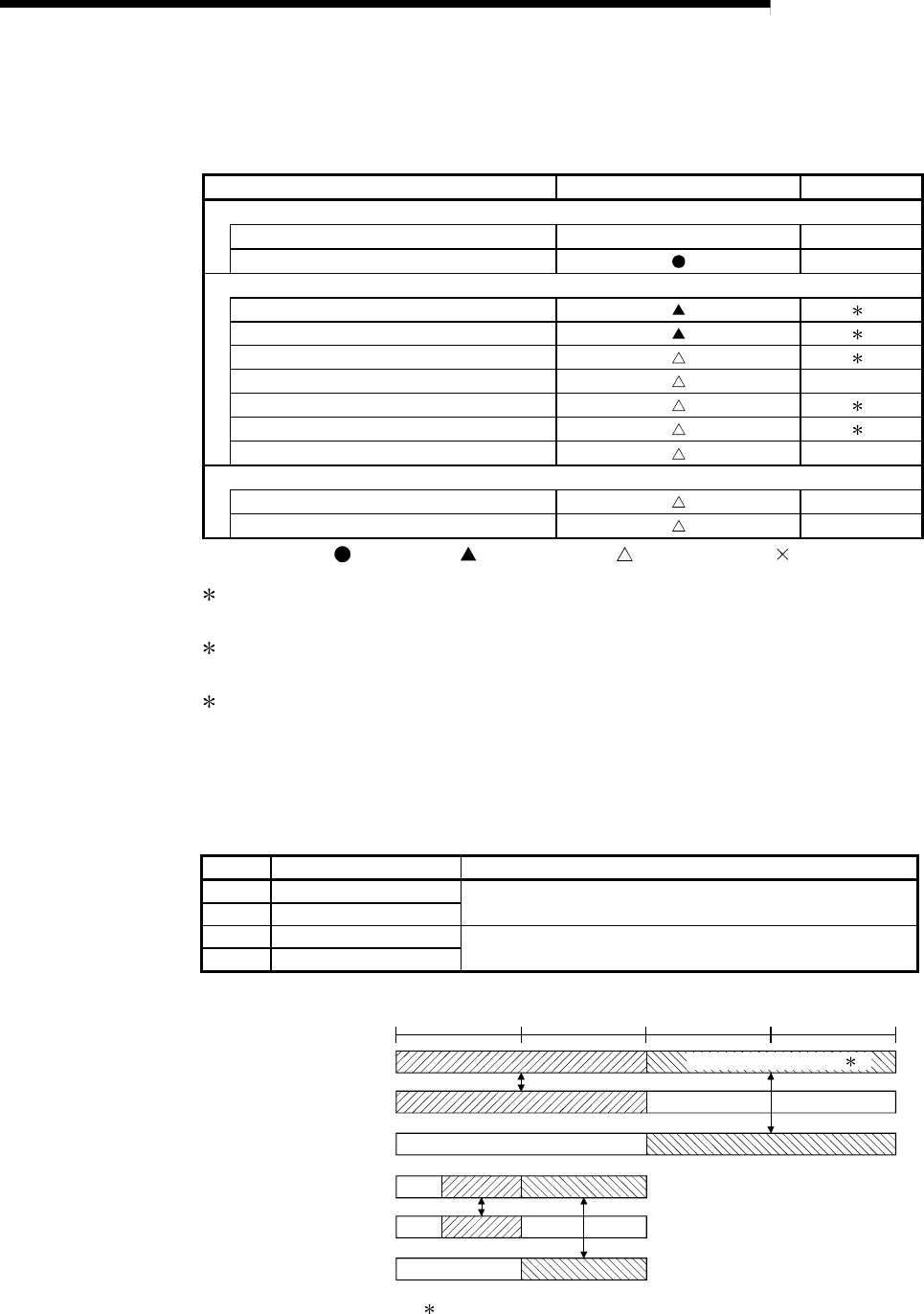

Table 2.8 Remote I/O station setting items
Setting items Remote I/O station (R) Reference
Network module main module switch
STATION NO. 1 to 64 Section 4.2.2
MODE
Section 4.2.2
GX Developer parameter setting
PLC system
4
PLC RAS
4
I/O assignment 4
Operation setting Section 5.2.1
Ethernet setting 5
CC-Link setting 6
Remote password setting
Section 7.12
GX Configurator setting
Initial setting
Section 5.2.1(4)
Auto refresh setting
Section 5.2.1(4)
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
4 : Refer to the User's Manual (Function Explanation, Program Fundamentals) for
the CPU module used.
5 : Refer to the Q Corresponding Ethernet Interface Module User's Manual (Basic)
(SH-080009). Note that the interrupt setting is not available.
6 : Refer to the MELSEC-Q CC-Link System Master/Local Module User's Manual
(SH-080394E). Note that the interrupt setting is not available.
2.4.3 Available device ranges
The remote I/O network can use the following device ranges in the network module.
Device Available range Others
LB 0H to 3FFFH (16384 points)
LW 0H to 3FFFH (16384 points)
LX 0H to 1FFFH (8192 points)
The device range (excluding that of I/O module mounted on the host
station) should be assigned to each network module.
LY 0H to 1FFFH (8192 points)
B/W
LB/LWRemote I/O network 2
LB/LW
CPU module
0
3FFF
H
2000
H
3000H
(4096)
1000
H
(8192) (12288) (16383)
Remote I/O network 1
X/Y
LX/LYRemote I/O network 2
LX/LY
CPU module
Remote I/O network 1
Real I/O
1: Expandable by changing from [PLC parameters] - [Device settings]
Extended function area 1
