2 - 11 2 - 11
MELSEC-Q
2 SYSTEM CONFIGURATION
2.4.2 Setting items
(1) Table 2.7 lists the setting items for the master module main module for a remote
master station (MR) and the parameter settings from the GX Developer.

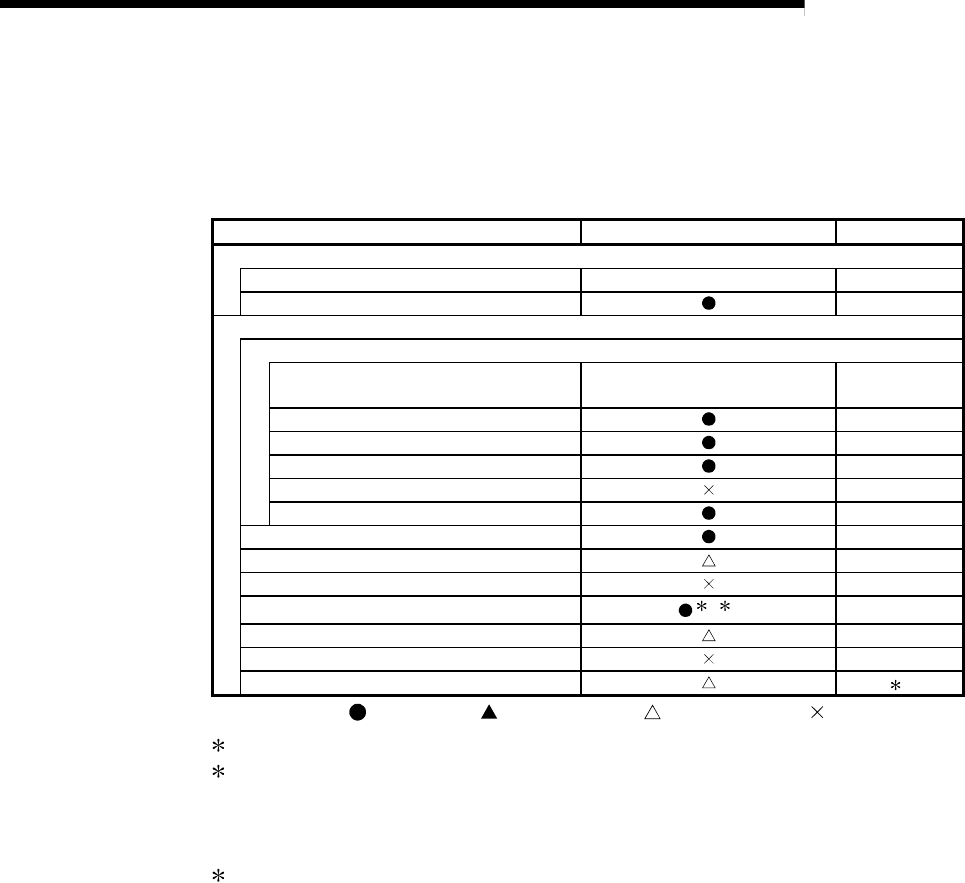

Table 2.7 Remote master station setting items
Setting items Remote master station (MR) Reference
Network module main module switch
STATION NO. 0 Section 4.2.1
MODE
Section 4.2.1
Parameter setting on GX Developer
Setting the number of Ethernet/CC IE/MELSECNET cards
Network type
MELSECNET/H
(Remote master station)
Section 5.1.1
Starting I/O No.
Section 5.1.2
Network No.
Section 5.1.2
Total number of remote modules
Section 5.1.2
Group No.
Mode
Section 5.1.2
Common parameters
Section 5.1.3
Supplementary setting
Section 5.1.4
Station specific parameters
Refresh parameters
1 2
Section 5.1.5
Valid module during other station access
Section 5.1.6
Inter-link data transfer parameters
Routing parameters
3
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
1: Default values are not set in LX/LY. Set the refresh parameters.
2: Default values are preset for LB/LW.
The CPUs other than the Universal model QCPU may operate even if refresh
parameters have not been set.
For the operation and precautions, refer to Section 5.1.5 (3).
3: Refer to the Q Corresponding MELSECNET/H Network System Reference
Manual (PLC to PLC Network) (SH-080049).
