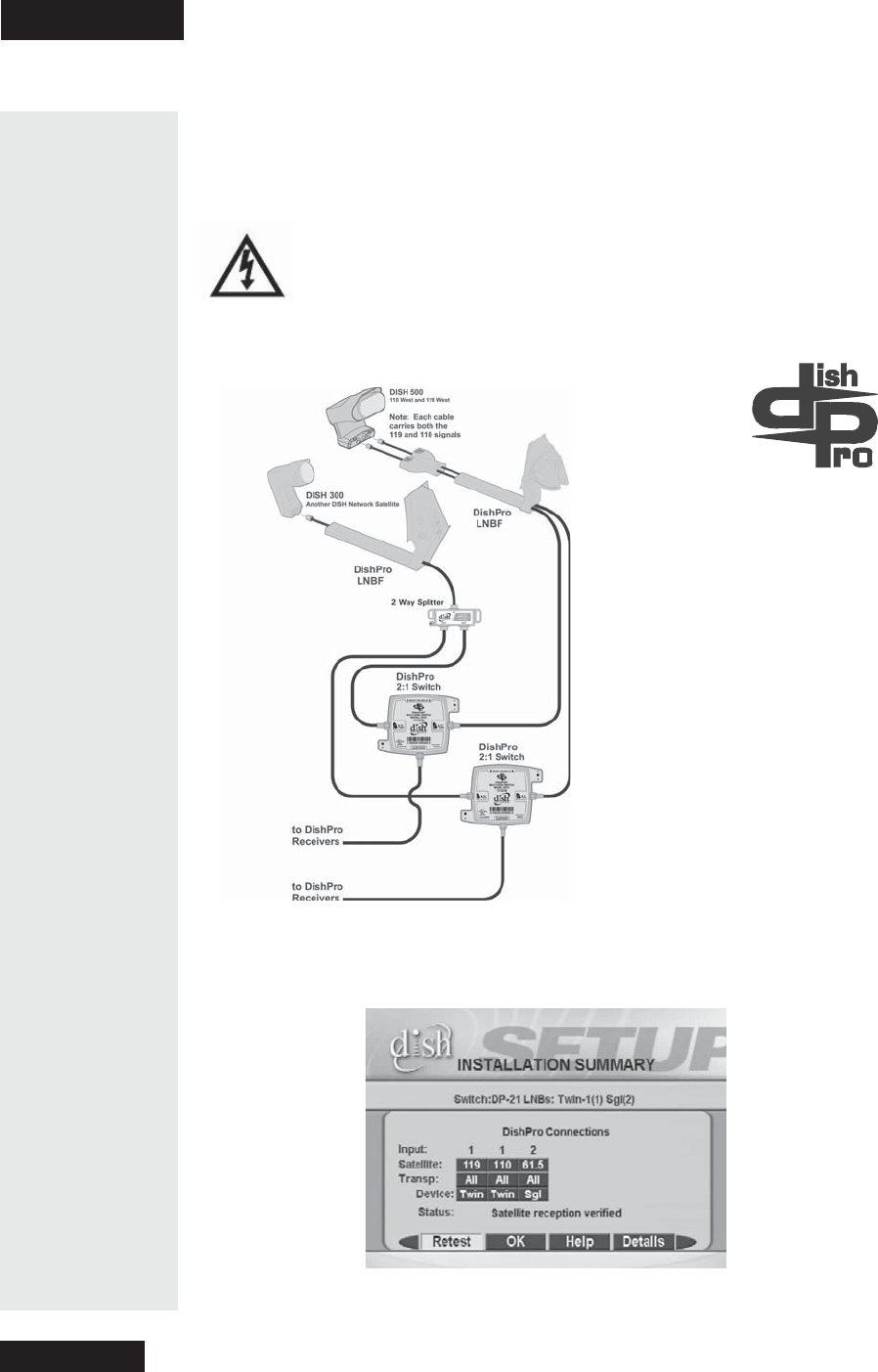

Installation Instructions
Two Dishes, One Dis hPro Twin LNBF, One DishPro Single LNBF,
One DishPro Compliant Splitter, Two DishPro 21 S witches, Two
Receivers
This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC) and all
local electrical codes.
When you set up your system following this dia gram a nd run Che ck Switch
the Installation Summary screen should look similar to the one shown
below.
*
* When using a DishPro compliant
splitter to split the signal from a
DishPro single LNBF, the receiver
whose DP21 switch is connected to
the passing side of the splitter must
be plugged into a live power outlet
at all times. If not, the DishPro
single LNBF will not have any
power and wi ll not be able to
provide satellite signal to the other
receiver.
