Chapter 4 Recording & Playback
4-4 (E) 4-2 Preparations for Playback
4-2 Preparations for Playback
4-2-1 Switch Settings
Before starting playback, make any necessary switch settings. The relevant
switches are shown in the following figure: refer to the pages shown in
parenthesis.

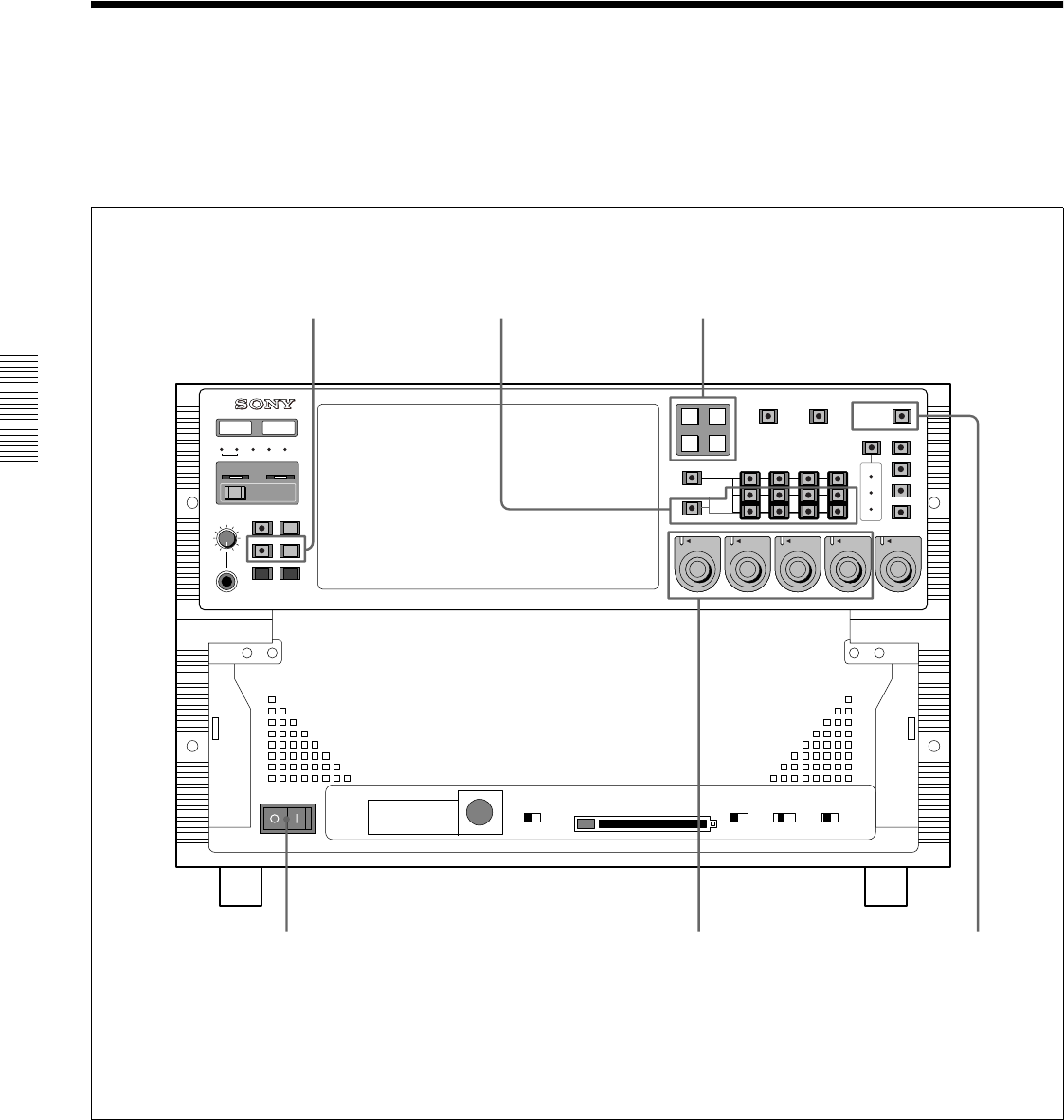

CONTROL PANEL
PANEL SELECT CHARACTER
REAR FRONT
1 2 3
NONE OFF ONBOTH
SETUP
SELECT
METER
PANEL
CONTROL
PANEL
ACCESS
MEMORY CARD
COMPOSITE SDI
VIDEO
INPUT
REMOTE
R1
PORT SELECT
R2/
P3
P1
INPUT
SDI
AES/EBU
ANALOG
CH1
CH1
PRESET
AUDIO INPUT / MONITOR SELECT
CH2 CH3 CH4
MONITOR
L
R
METER
PANEL
525
REMOTE
MENU
LOCAL
CONTROL
PANEL
625
SETUP BANK
TOTAL /
REMAIN
PROCESS
CONTROL
VIDEO
CHROMA
SET UP/BLACK
CHROMA/PHASE
PHONES
123
SYSTEM HDD
HELP
FULL /
FINE
TC/UB TIMER SEL
MENU
10
SET
0
CH2
PRESET
CH3
PRESET
CH4
PRESET
VIDEO/MENU
PRESET
R3/
P2
TC/UB and TIMER SEL buttons
(page 2-3): Selecting the timecode
displayed
MONITOR SELECT buttons
(page 4-5): Selecting the audio
channels to be monitored
PORT SELECT buttons
(page 4-5): Selecting the port to be controlled
(page 4-5): Selecting the port to be monitored
REMOTE button
(page 4-6): Selecting the
device used for controlling
recording operations
(external device connected to
the REMOTE IN connector, or
optional BKMA-505 Control
Panel)
AUDIO REC/PB LEVEL controls
(page 4-6): Adjusting the playback levels
POWER switch: ON
