About Display
CH00 EXT P1
[MINOLTA ]
* This shows when the entire display area is lit. (The LCD display section is not shown.)

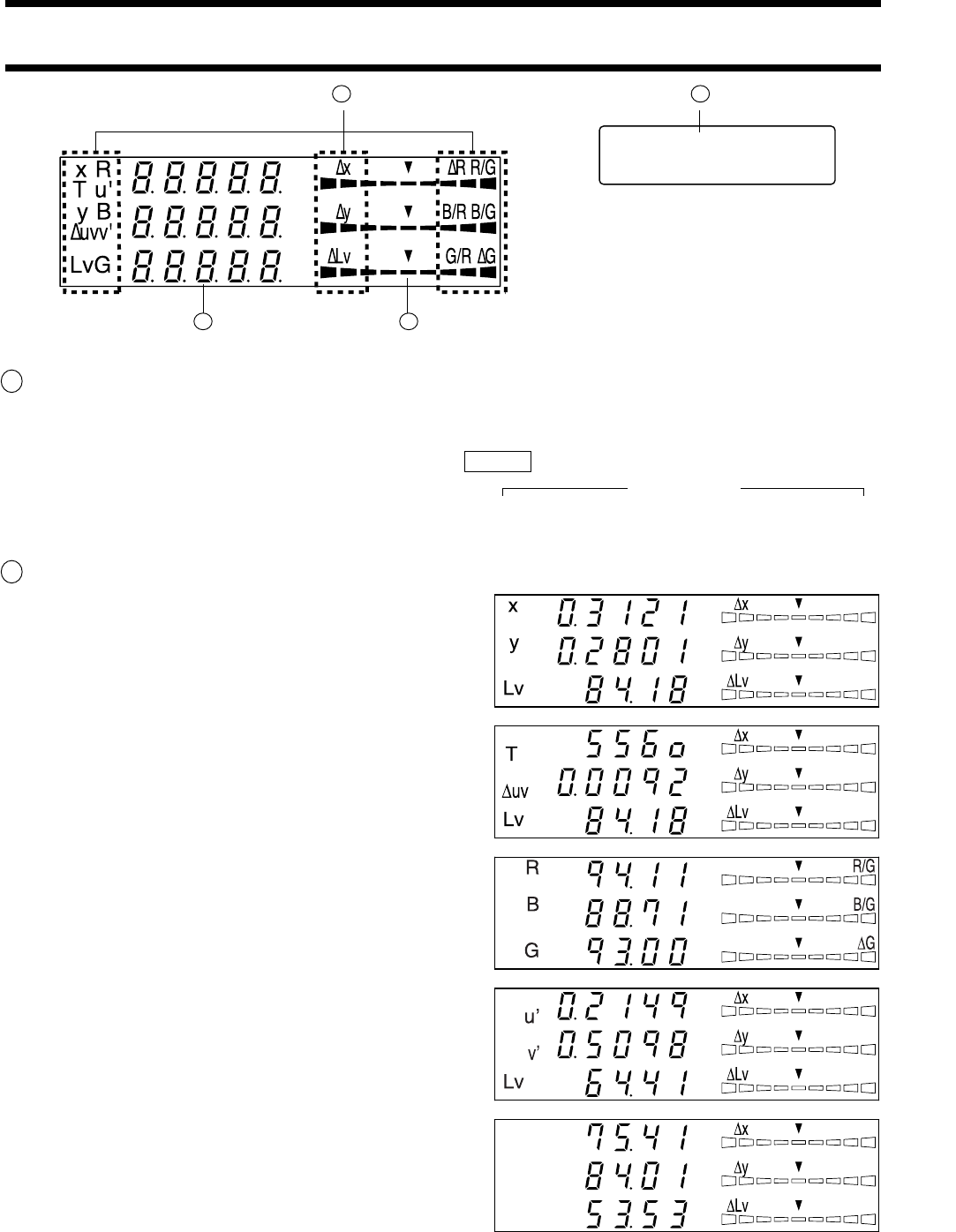

1 Measurement mode
indications
2Digital display section 3 Analog display section
4 LCD display section:
Analyzer mode
1 Measurement mode ................................. Displays the measurement mode in which the measured values are
displayed.
Measurement mode switches from one to another as shown below
each time the MODE key is pressed. (Page 40)
xyLv→T∆uvLv→RBG (R/G, B/G, ∆G)→RBG (∆R, B/G, G/R)→
u'v'Lv→XYZ →xyLv
2 Digital display section ............................. Displays the measured values.
● When xyLv measurement mode is selected
x, y and Lv are displayed.
● When T∆uvLv measurement mode is selected
T, ∆uv and Lv are displayed.
T (correlated color temperature) is displayed in three
significant digits.
● When an analyzer measurement mode is selected
R, B and G are displayed. R-reference and G-reference
are available. (The same contents are displayed in the
digital display area, whether R-reference or G-reference.)
● When u'v'Lv measurement mode is selected
u', v' and Lv are displayed.
● When XYZ measurement mode is selected
X, Y and Z are displayed. (X, Y and Z from top to bot-
tom)
