Encoded Data Elements
L5X Item L5K Item Description
type type The type of data encoded.
For L5K: ROUTINE
For L5X: Routine
name name The name of the protected routine.
routinetype routinetype The type of the routine protected (RLL, FBD, SFC, or ST).
other_attributes other_attributes Attributes of the routine that are not protected during export.
encoded_data encoded_data The protected portion of the routine.
Important:
When the routine is source protected, the encoded_data information is encrypted. If you modify this encrypted
information, you will not be able to re-import the routine.

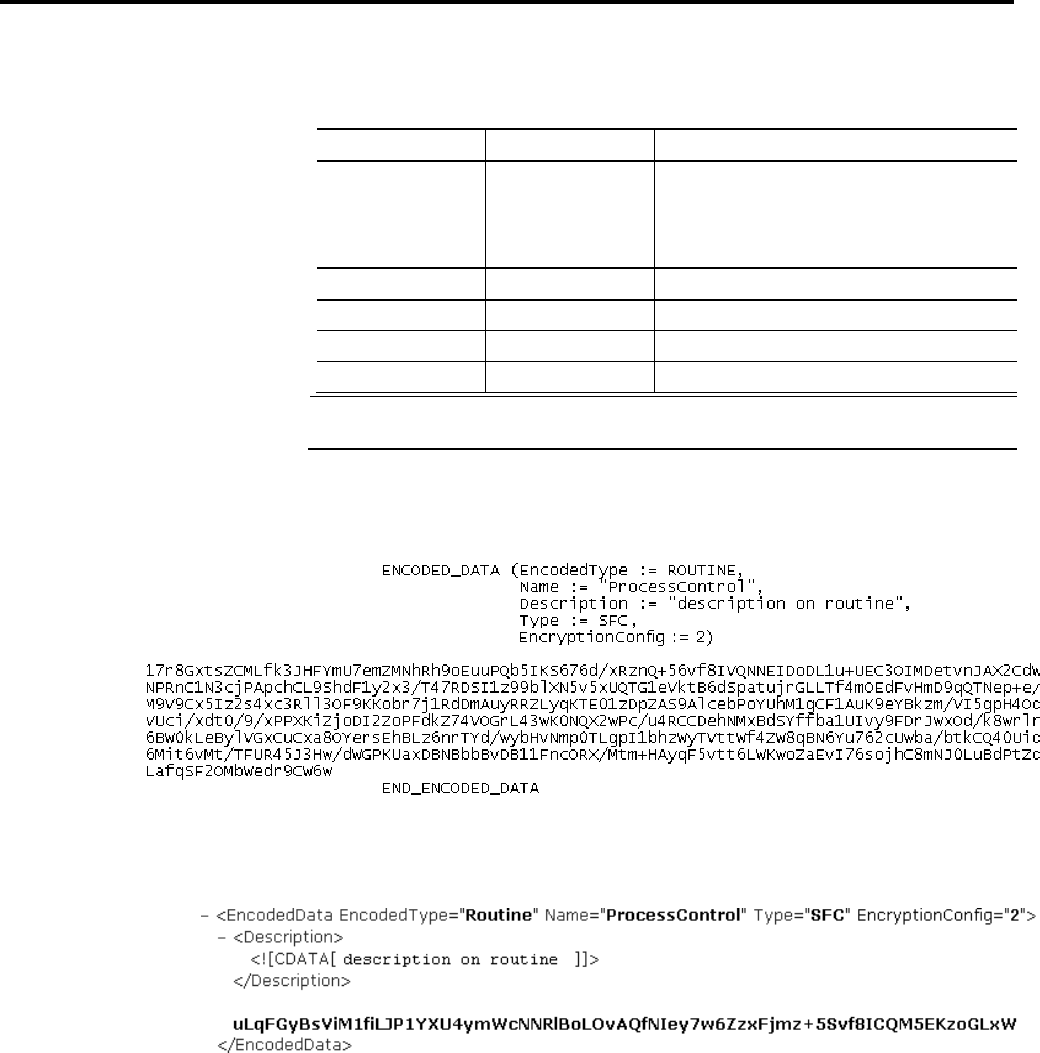

L5K source protected routine example
L5X source-protected routine examples
Observe these guidelines when defining a program.
• Define the main and fault attributes in any order.
• You must put the tag declaration block before the routine block.
• Define up to 1000 programs per task.
• When you import a project:
Program guidelines
