Define a sequential function chart routine Chapter 10
Rockwell Automation Publication 1756-RM084S-EN-P - March 2015 197
L5X Item L5K Item Identifies
ToID ToElementID The ID of the object that the FromID object is attached to. Type
an unsigned, 32-bit integer value.
Attachment guidelines
Use these guidelines for attachments:
Use an attachment to link a text box to an SFC element.
All attachment blocks must come after all text box blocks.

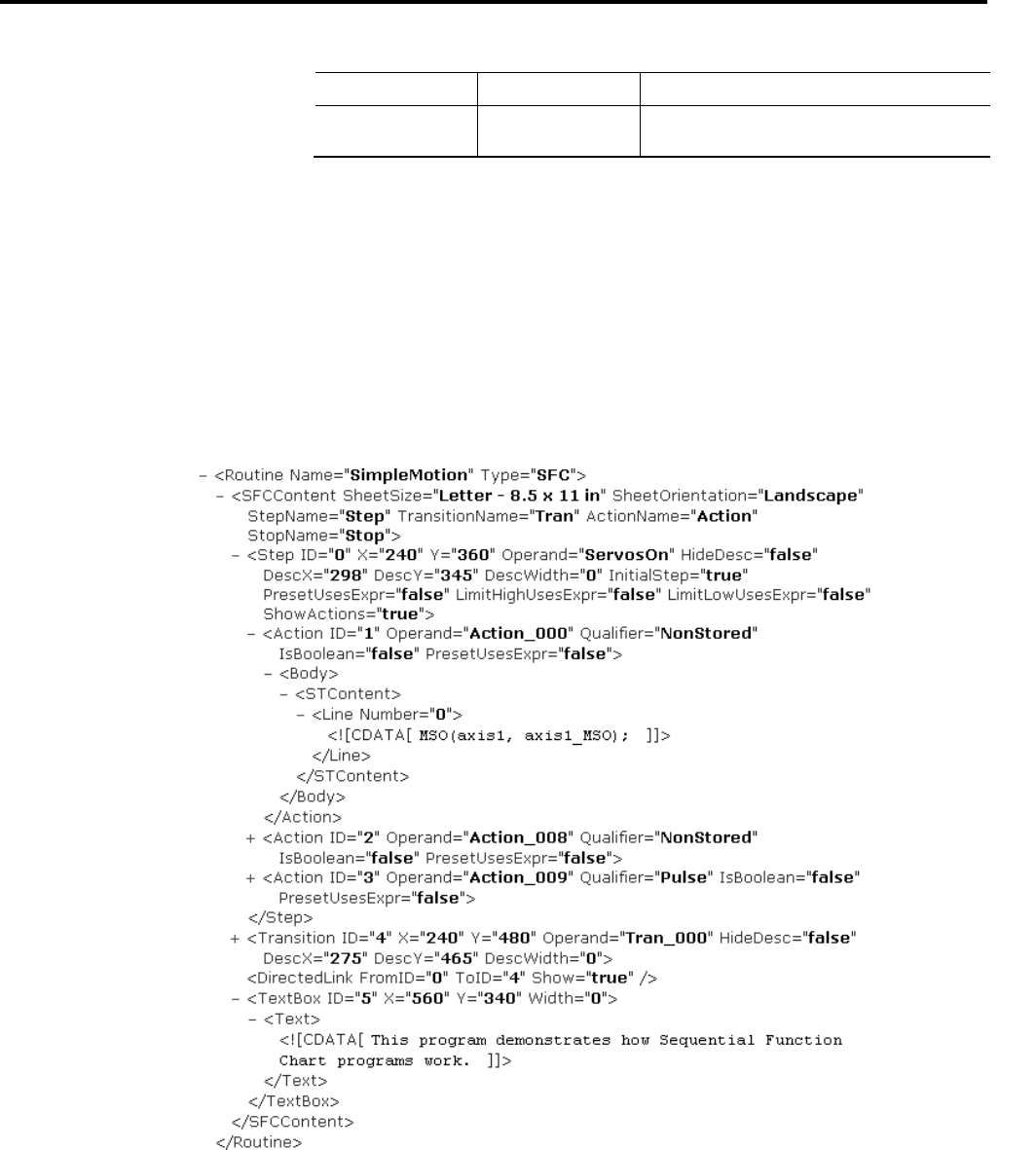

L5X sequential function chart example
Examples
