7 - 22
7.3 Procedures of Online Module Change
7.3.4 When user range setting is used and initial setting has been made with GX Configurator-TI (Separate
7
ONLINE MODULE CHANGE

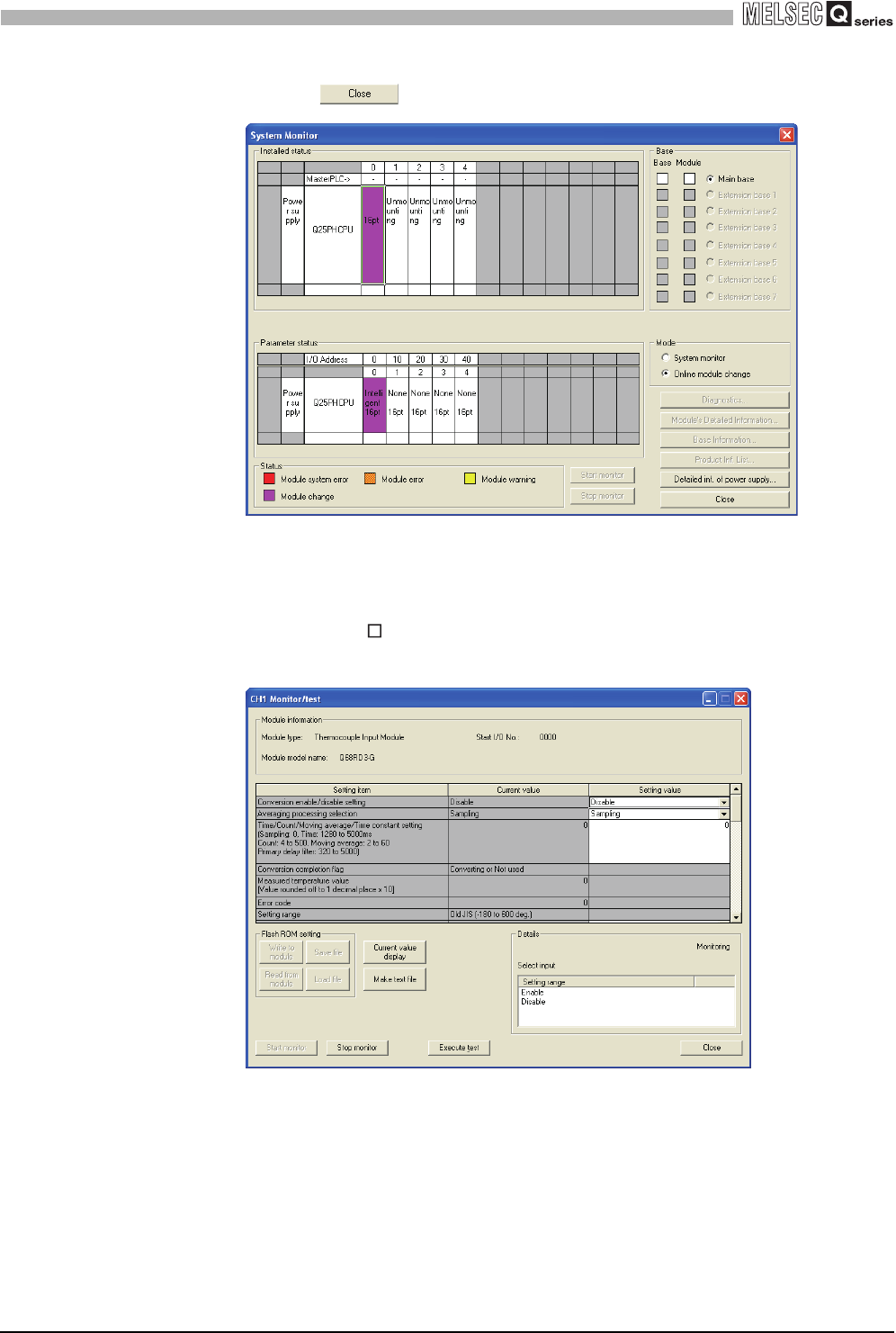

(c) Click the button to close the "System monitor" screen.
(d) Set the noted values on the "OMC (Online Module Change) refresh data" screen
of GX Configurator-TI and execute a OMC refresh data write request. (Refer to
Section 5.6.3.)
(e) Monitor the CH Measured temperature value (Un\G11 to Un\G18) to check that
conversion has been made properly.
