APPENDICES
Appendix 1 Dedicated Instructions
Appendix 1.3 G(P).OGLOAD
APPX - 7
APPENDICESINDEX
(1) Function
(a) This instruction reads the User range settings offset/gain values of the Q68RD3-G
to the CPU module.
(b) There are two types of interlock signals for the G(P).OGLOAD instruction: the
completion device (D) and the completion status indication device (D)+1.
1) Completion device
Turns ON in the END processing of the scan where the G(P).OGLOAD
instruction is completed, and turns OFF in the next END processing.
2) Completion status indication device
Turns ON and OFF depending on the completion status of the G(P).OGLOAD
instruction.
(2) Operation error
No operation error occurs.

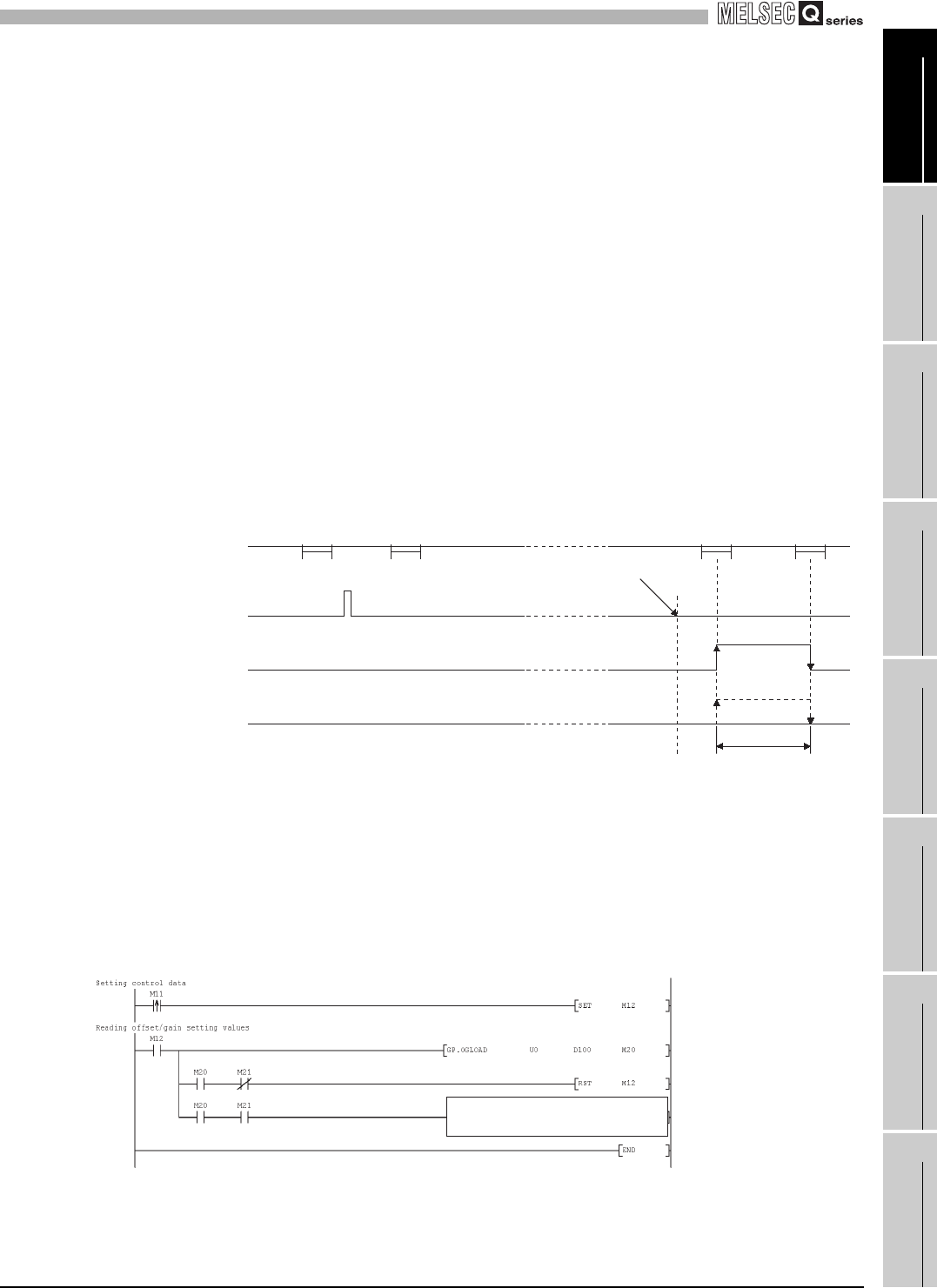

(3) Program example
In this program example, when M11 turns ON, the offset/gain values of the
Q68RD3-G mounted in the position of I/O number X/Y0 to X/YF are read to the CPU
module.
Normal completion : Remains OFF.
Error completion : Turns ON in the END processing of the scan where the
G(P).OGLOAD instruction is completed, and turns OFF
in the next END processing.
ON
OFF
OFF
OFF
ON
Sequence program
G(P).OGLOAD instruction
Completion device (D)
Completion status
indication device (D)+1
END processing END processing
END processing END processing
Execution completion of
the G(P).OGLOAD instruction
ON Error
completion
Normal completion
1 scan
Processing at the time of error completion
Dedicated instruction
(GP.OGLOAD)
