19 BUILT-IN I/O FUNCTION
19.4 Pulse Catch Function
185
19
Pulse catch parameters
This section explains the pulse catch parameters.
Set the pulse catch parameters in GX Works3.
Outline of parameters
Pulse catch parameters are pulse catch setting and input response time.
Parameter setting
This section explains how to set pulse catch parameters.
For input response time, refer to Page 191 General-purpose Input Functions.
Navigation window [Parameter] [FX5UCPU] [Module Parameter] [High Speed I/O] “Input Function"
"General/Interrupt/Pulse Catch" "Detail Setting"

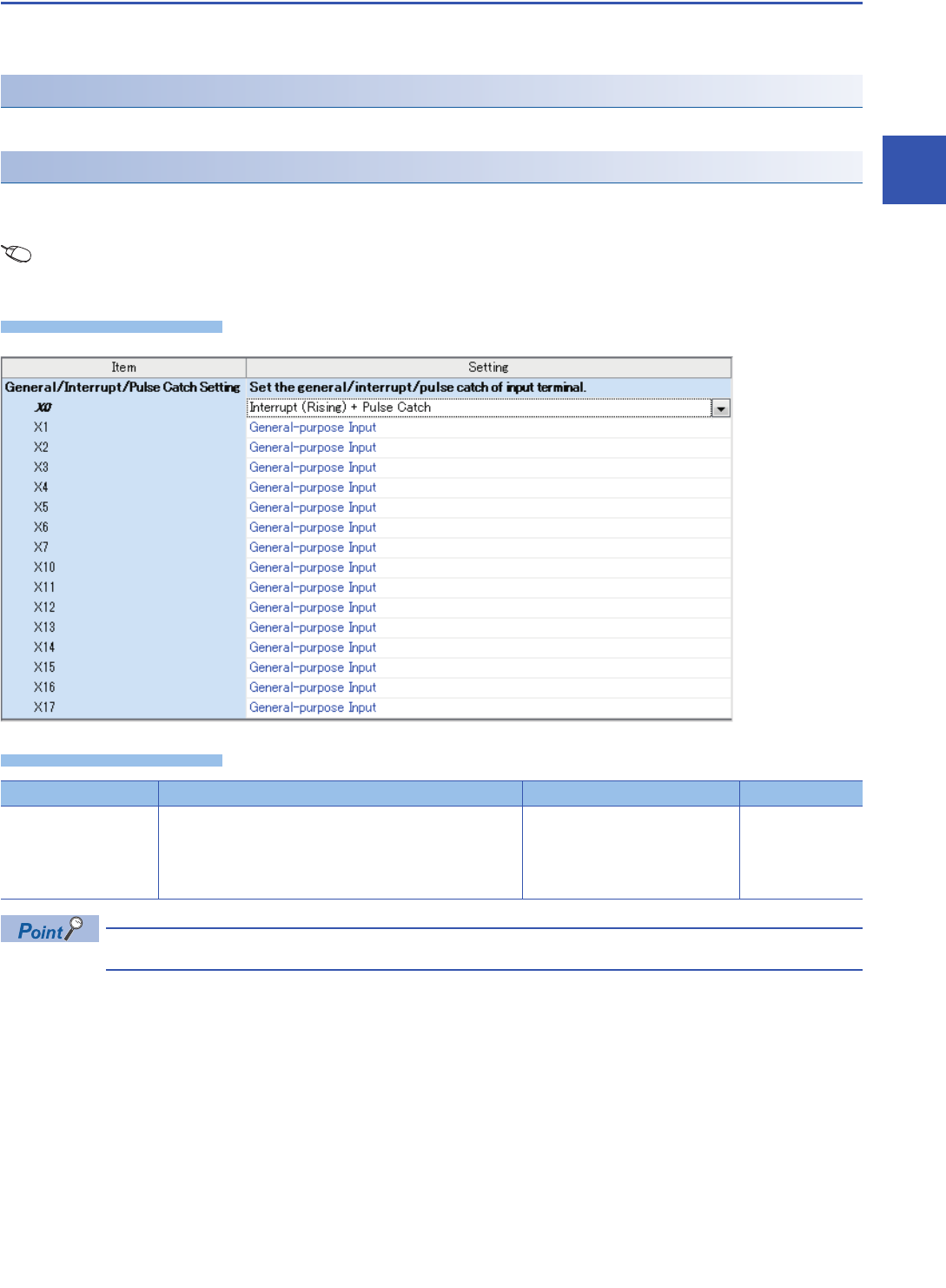

Window
Displayed items
Parameters are enabled when the CPU module is powered ON or after a reset.
Item Description Setting range Default
General/Interrupt/Pulse
Catch
Set the function to be used.
Set to “Interrupt (Rising) + Pulse Catch”.
General-purpose Input
Interrupt (Rising)
Interrupt (Falling)
Interrupt (Rising + Falling)
Interrupt (Rising) + Pulse Catch
General-purpose
Input
