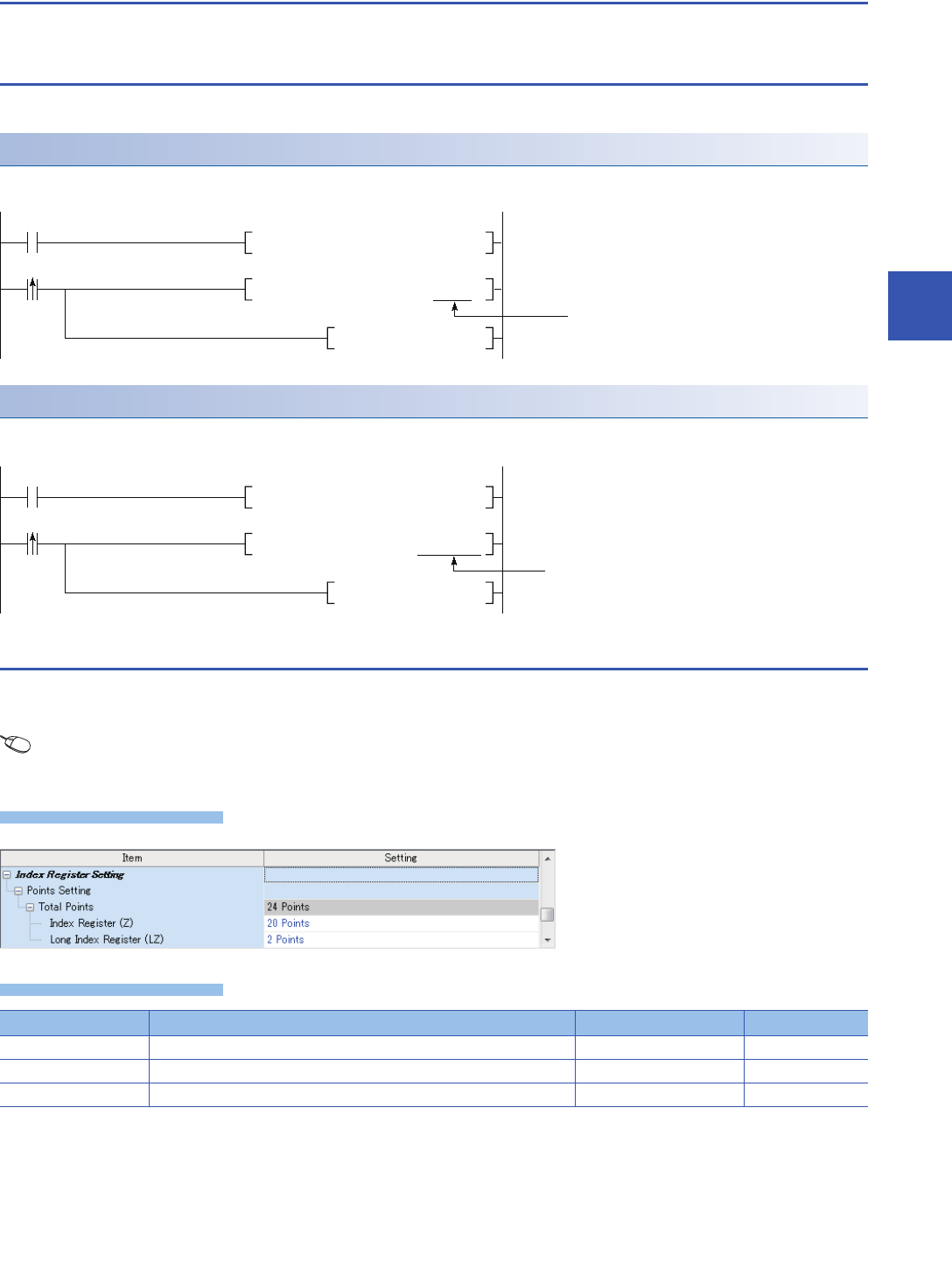

21.5 Index Registers (Z/LZ)
Device used for indexing of devices.
Types of index registers
There are 2 types: the index register (Z) and long index register (LZ)
Index register (Z)
Used for 16-bit index modification.
Long index register (LZ)
Used for 32-bit index modification.
Index register setting
A total of 24 words can be used for index register (Z) and long index register (LZ). The number of points can be changed by
parameter.
Navigation window [Parameter] [FX5UCPU] [CPU Parameter] "Memory/Device Setting" "Index Register
Setting"
Window
Displayed items
Item Description Setting range Default
Total Points Show the total number of points for index register and long index register. 
Index Register (Z) Set the number of points for index registers. 0 to 24 points (2 point unit) 20 points
Long Index Register (LZ) Set the number of points for long index registers. 0 to 12 points (1 point unit) 2 points
MOV K100 Z0
INC Z0
MOV W0 D0Z0
SM402
M10
Access D0Z0 = D100.
DMOV K50000 LZ0
DINC LZ0
MOV D0 U1\G0LZ0
SM402
M10
Access U1\G0LZ0 = U1\G50000.
