Chapter 8 Knob Functions
208 Chapter 8 Knob Functions
FILTER [LFO FIL DPTH]
Range: 000 to 127
Default: 000
Works on: Sample tracks
Sets the amount by which the LFO modulates the filter cutoff frequency. A filter
depth of 000 applies no modulation, while a setting of +127 applies maximum modu-
lation. The LFO modulation is applied as an offset to the filter cutoff value set by the
FILTER/CUTOFF function (→ p.210).
PITCH [LFO PIT DPTH]
Range: 000 to 127
Default: 000
Works on: Sample tracks
Sets the amount by which the LFO modulates the pitch. A setting of 000 applies no
modulation, while a setting of +127 applies maximum modulation. The LFO modu-
lation is applied as an offset to the pitch value set by the SOUND/PITCH function (→
p.198).
EQ Group
The SU700 includes a built-in 2-band equalizer for each track (except for the AUDIO
IN track.)
A 2-band equalizer operates by adjusting the gain at two specified frequency bands:
the high band and the low band. For each equalizer, therefore, you must set the loca-
tion (central frequency) for each band and the gain to be applied at that band.
Note that positive gain values increase the output level (sound volume) within the
band, while negative gain settings reduce the output level within the band.

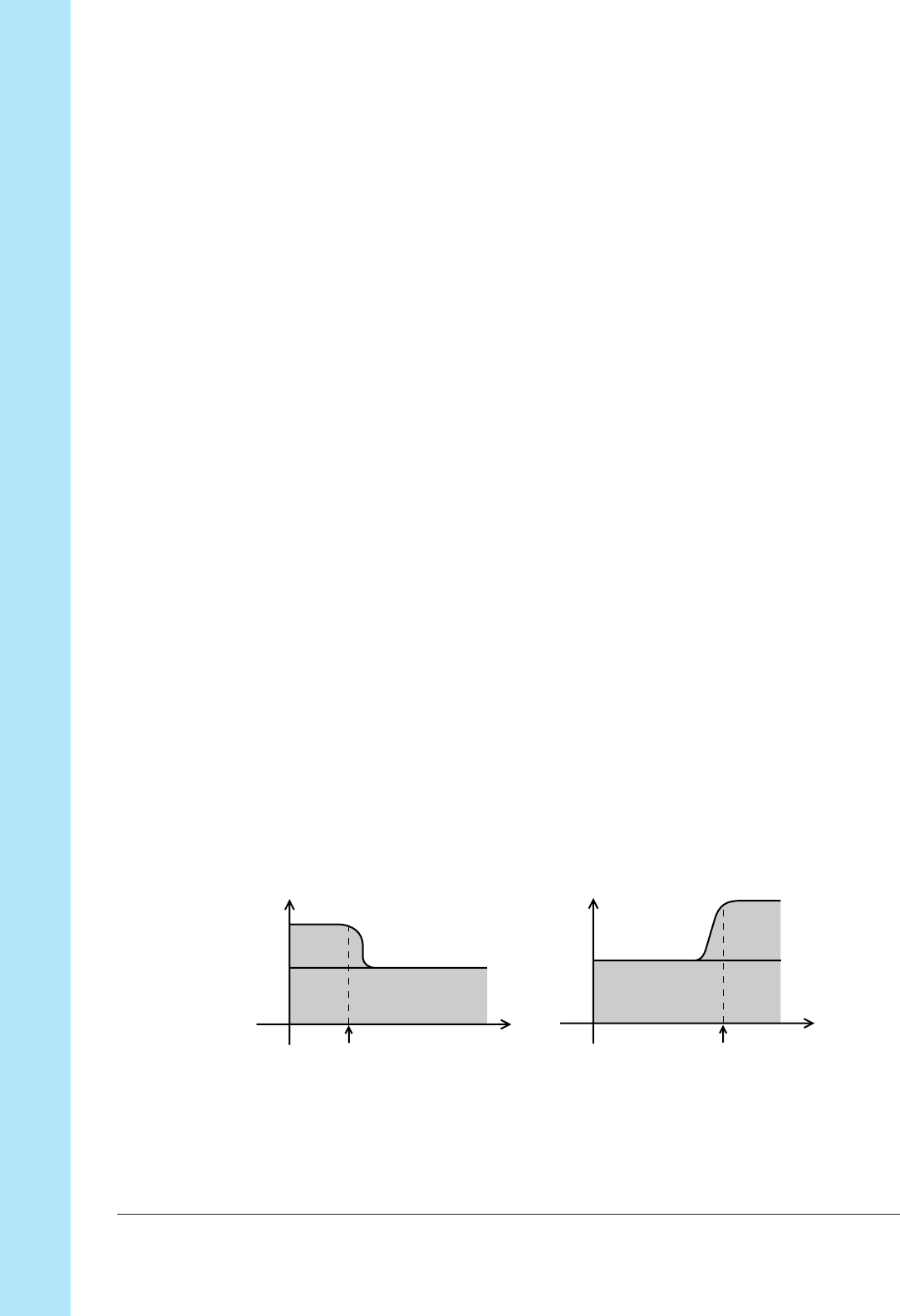

If both gain settings are positive:
Low Band High Band
Level
Freq
Level
Freq
Sample Smaple
Central frequency
Central frequency
