4 - 12
MELSEC-
A
4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
4.3 Connection of CC-Link dedicated cable
Connect the D75P2 with the master module by the "CC-Link dedicated cable". Make
connection in the following procedure.
[1] Connection procedure
(1) Confirm if all phases of the externally supplied power for the system (the master
modules, peripheral devices, etc.) are switched off or not.
*If not, switch off all phases.

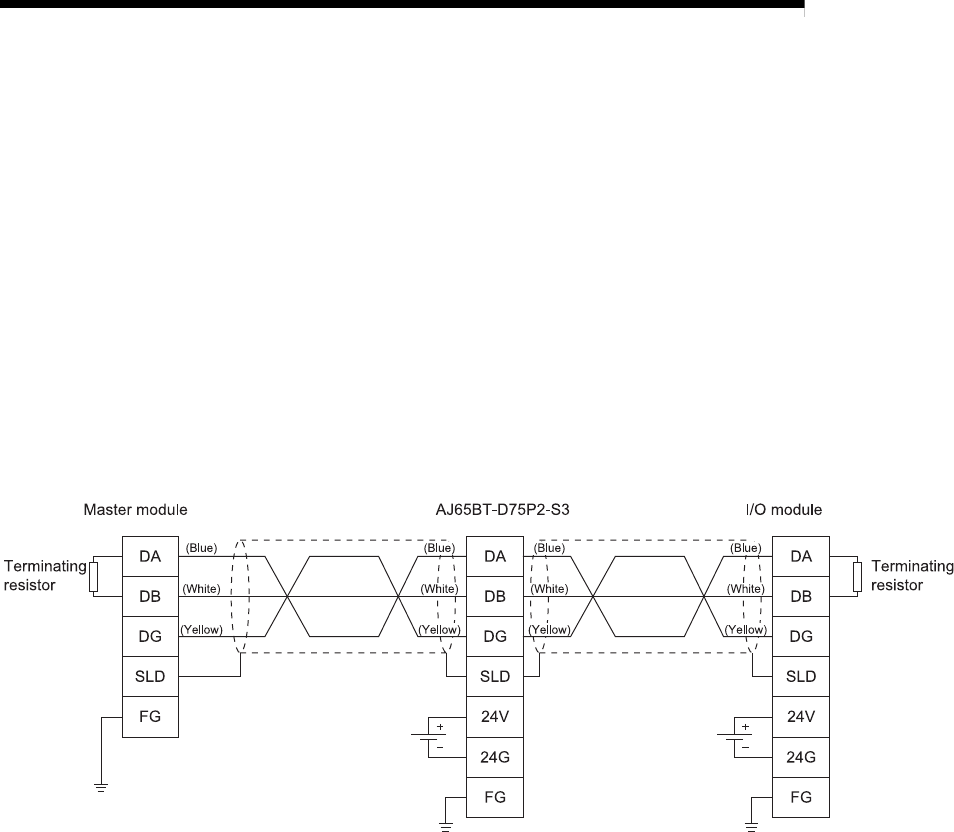

(2) Connect the D75P2 and master module in accordance with the following
diagram.
