6 SEQUENCE PROGRAM USED FOR POSITIONING CONTROL
6.1 Information necessary for program creation
6.1.1 When ACPU/QCPU (A mode) is used
[1] System used in this chapter
An example of the sequence program explained in this chapter for use of the
ACPU/QCPU (A mode) is described for the following system.
For the sequence program for the entire CC-Link system, refer to the CC-Link Master
Module User's Manual; for details on the dedicated instructions, refer to the Type
AnSHCPU/AnACPU/AnUCPU/QCPU-A (A Mode) Programming Manual (Dedicated
Instructions).
When applying any of the program examples introduced in this chapter to the actual
system, verify the applicability and confirm that no problems will occur in the system
control.

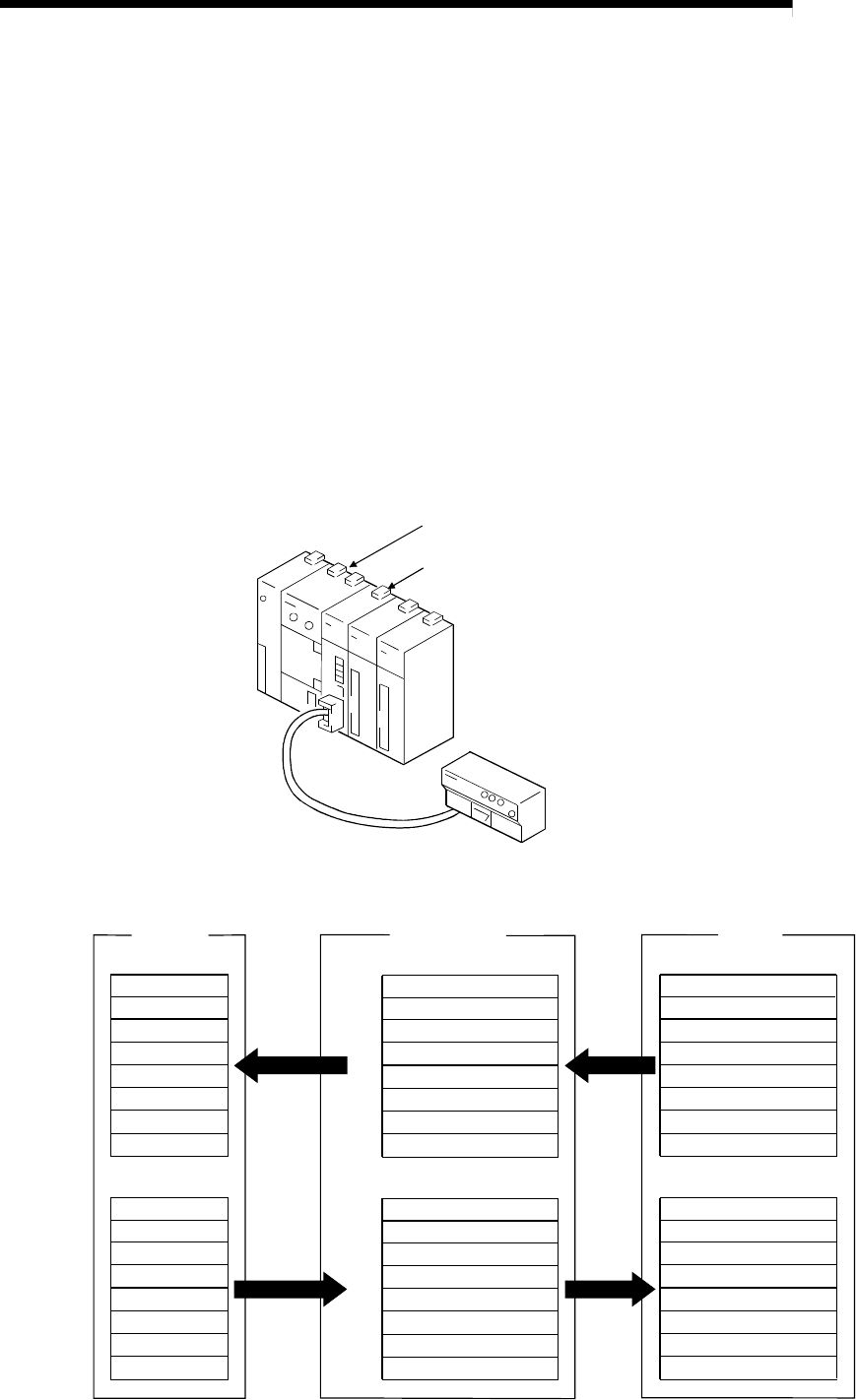

(1) System configuration for program example
PLC CPU
Master module (X0 to X1F/Y0 to Y1F)
D75P2 (Station No. 1)
(2) Relation of PLC CPU, master module and D75P2
The contents of RXn0 to RX(n+7)F are read to X100 to X17F, and the contents
of RYn0 to RY(n+7)F are written into Y100 to Y17F and used.
RYn0 to RYnF
RY(n+1)0 to RY(n+1)F
RY(n+2)0 to RY(n+2)F
RY(n+3)0 to RY(n+3)F
RY(n+4)0 to RY(n+4)F
RY(n+5)0 to RY(n+5)F
RY(n+6)0 to RY(n+6)F
RY(n+7)0 to RY(n+7)F
PLC CPU
Master module
D75P2
RXn0 to RXnF
RX(n+1)0 to RX(n+1)F
RX(n+2)0 to RX(n+2)F
RX(n+3)0 to RX(n+3)F
RX(n+4)0 to RX(n+4)F
RX(n+5)0 to RX(n+5)F
RX(n+6)0 to RX(n+6)F
RX(n+7)0 to RX(n+7)F
Remote input (RX)
Device X
X100 to X10F
X110 to X11F
X120 to X12F
X130 to X13F
X140 to X14F
X150 to X15F
X160 to X16F
X170 to X17F
E0
H
E1H
Remote input (RX)
Address
E2
H
E3H
E4
H
E5
H
E6
H
RXn0 to RXnF
RX(n+1)0 to RX(n+1)F
RX(n+2)0 to RX(n+2)F
RX(n+3)0 to RX(n+3)F
RX(n+4)0 to RX(n+4)F
RX(n+5)0 to RX(n+5)F
RX(n+6)0 to RX(n+6)F
RX(n+7)0 to RX(n+7)FE7
H
Remote output (RY)Device Y
Y100 to Y10F
Y110 to Y11F
Y120 to Y12F
Y130 to Y13F
Y140 to Y14F
Y150 to Y15F
Y160 to Y16F
Y170 to Y17F
160
H
Remote output (RY)
Address
RYn0 to RYnF
RY(n+1)0 to RY(n+1)F
RY(n+2)0 to RY(n+2)F
RY(n+3)0 to RY(n+3)F
RY(n+4)0 to RY(n+4)F
RY(n+5)0 to RY(n+5)F
RY(n+6)0 to RY(n+6)F
RY(n+7)0 to RY(n+7)F
161
H
162
H
163
H
164H
165
H
166
H
167H
