4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
(3) Assembling the connector section
(a) Fit the soldered connector and cable fixture into the
connector cover.
* The cable fixture acts as a stopper to protect the signal wire connection
section when the cable is pulled on. If the cable is not sufficiently
tightened with the cable fixture, wind insulation tape around the cable so
that it can be sufficiently tightened and pressed down.

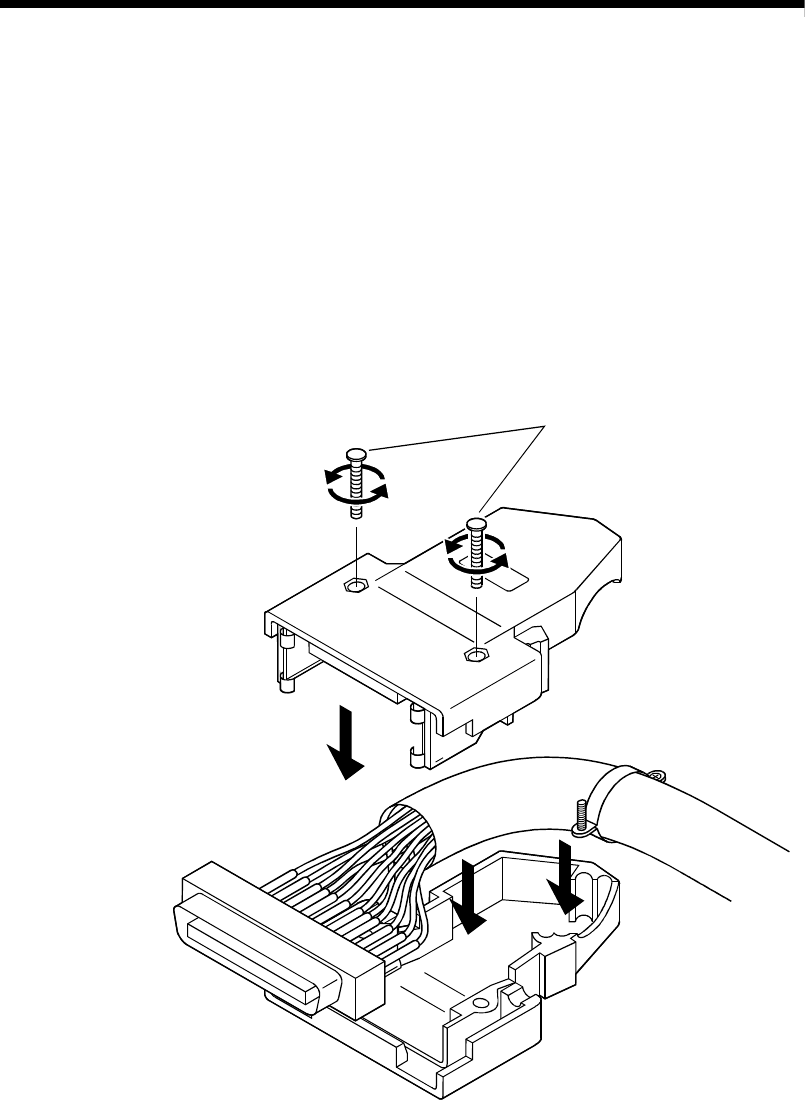

(b) Sandwich the parts with the connector cover, and tigthen
screw A.
A
